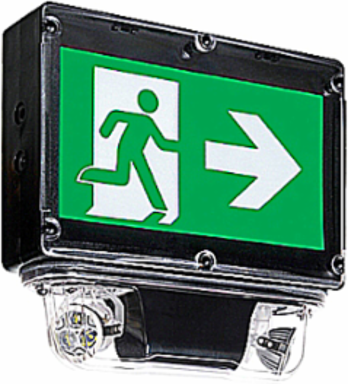

Lumacell LNC1W6N36LD1ATCW Pictogram Combination Unit

MPN: LNC1W6N36LD1ATCW
UPC: 062461632855
PPN: T-B-LNC1W6N36LD1ATCW

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2425.00/ EA

Qty:

Loading add to cart quantity...

Description

Pictogram Combination Unit, Unit Type: NEMA-4X & NSF, Battery Type: nickel-cadmium, Voltage DC: 6V, Battery Wattage: 36W, single face, universal mount, Colour: factory white, 120/347VAC, auto-diagnostics, audible, cold-weather -40°C , Head Style: shielded, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Battery Run Time: 30 minutes

Features

Sealed, vandal-resistant faceplate of polycarbonate
Legend illuminated by long-life white LED’s is warrantied for 10 years
Comes standard with two pictogram films per face, for direction selection
Two high-performance MR16 lamps shielded by a clear polycarbonate cover
Remote load capacity: covers with 4W LED lights 100 feet up to 230 feet of egress illumination

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39111707 Combo light unit exit

Brand Name: Lumacell

Application: Institutional, Industrial, Hospitality

Wattage: 36W

Battery Runtime: 30 minutes

Lamp Type: MR16 LED

Legend: On

Material: Frame: Polyvinyl chloride / Faceplate: Polycarbonate

Environmental Conditions: Cold weather -40 degree C (-40 degree F)

Lamp Wattage: 4W

IGCC3938 Combo light unit exit

TypePictogram Combination Unit

StandardCSA

Voltage Rating120/347VAC, 6VDC

BatteryNickel-cadmium

Number Of Lamps2

Size12-5/8 Inches Height x 14 Inches Width

MountingUniversal

ColorFactory white

Packaging

Outer Quantity: 1

Weight Uom: 14 lbs. Each

Outer Dimensions (inches)1x1x1

European Specifications (ETIM)

ETIM: EC001957 Emergency luminaire

Lamp power: 4W

Colour housing: Black

Voltage type: AC/DC

Width: 357mm

Lamp typeLED exchangeable

Material housingOther

Battery qualityNiCd

Nominal voltage120-347V

Height/depth321mm
