nVent Hoffman

nVent Hoffman PP20105 ProLine Industrial Packages Type 12, 2000x1000x500, Lt Gray, Steel

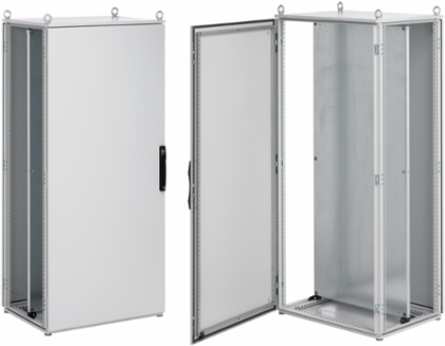

ProLine Industrial Packages Type 12, 2000x1000x500, Lt Gray, Steel
  • MPN: PP20105
  • UPC: 783510142087
  • PPN: HOF-PP20105
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3431.08/ EA

Description

ProLine Type 12 Industrial Packages are full-featured solutions that include all components. This ProLine Industrial Packages Type 12, PP20105 item measures 2000x1000x500mm with a material of Steel colored Lt Gray.

Features

  • Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
  • Standard door bars increase strength and rigidity and allow for an extra mounting options
  • Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
  • Gasket and latching system together ensure a solid seal with low closure force
  • Reversible door, left hinged as a default, with 130-degree swing
  • Galvanized mounting plates
  • Capped ground studs on door, rear and top panel
  • Integral frame channels support the full weight of the mounting plates
  • Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
  • Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
  • Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
  • Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,000
Protection Rating
NEMA Type 12
Finish
Powder Coated
Weight
391
Material
Steel
Color
LtGray
Height (H)2,000
Depth (D)500
Product FamilyProLine
Color CodeRAL 7035
Sub BrandProLine
Size2000x1000x500mm
NEMA Rating12 Indoor, dust-resistant
