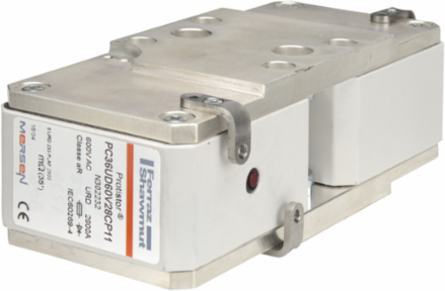

Mersen N302232 Protistor® aR Fuse Link, 2x33 Size, 2800A, 600V AC, Silver-Plated Copper
Mersen N302232 Protistor® aR Fuse Link, 2x33 Size, 2800A, 600V AC, Silver-Plated Copper
- MPN: N302232
- PPN: FER-N302232
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2883.56/ EA
Description
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body ultra-fast acting aR fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 650 V
- Ampere Rating
- 2800 A
- AC or DC
- AC
- Fuse Size
- 2x33
- Clearing I2t At Rated Voltage
- 8800 kA²s
- AC Max I.R./Breaking Capacity: I1
- 160 kA
- Indication System Type
- Striker
- Connection/Terminal Type
- Plates with Metric Threaded Holes
- Power Dissipation at Rated Current Value
- 330 W
- Length
- 2.16 in
- Weight
- 5.512 lb
Rated voltage AC IEC600 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t1855 kA²s
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Width6.69 in
Height3.09 in
