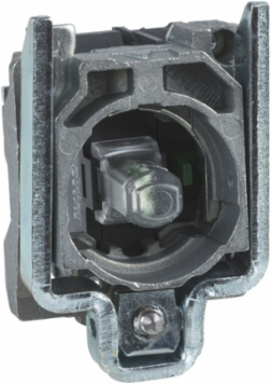

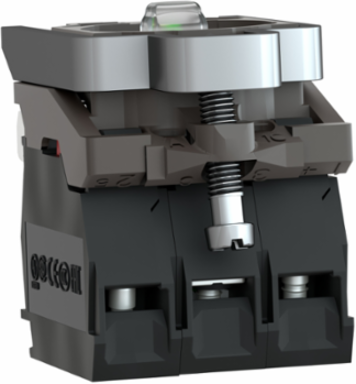

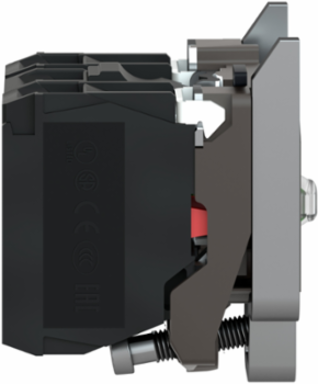

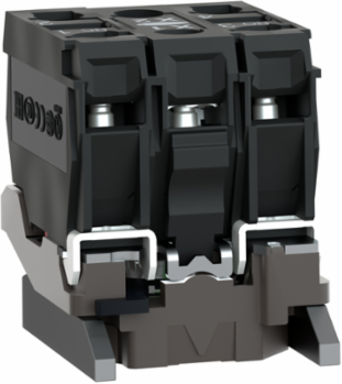

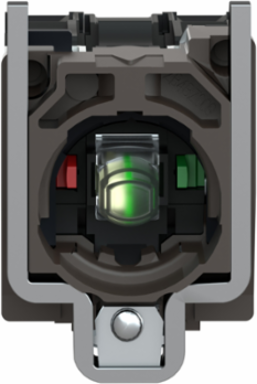

Schneider Electric ZB4BW0B45 Light block with body fixing collar, Harmony XB4, metal, red, integral LED, 24V AC DC, 1NO+1NC
Schneider Electric ZB4BW0B45 Light block with body fixing collar, Harmony XB4, metal, red, integral LED, 24V AC DC, 1NO+1NC
- MPN: ZB4BW0B45
- PPN: SCH-ZB4BW0B45
- UNSPSC: 39122216
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$90.25/ EA
Description
This Harmony XB4, light block with body/fixing collar is red, operates with an integral LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Large set of accessories to customize your panels
Specifications
Physical Attributes

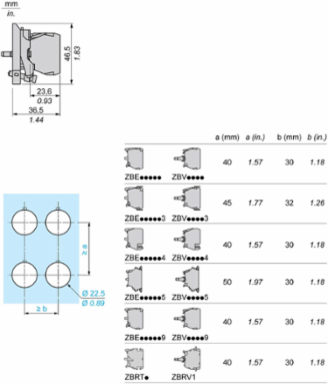

- Cad Overall Height
- 47 mm
- Light Source Color
- red
Cad Overall Width30 mm
Conformance Attributes
- Product Certifications
- DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
StandardsIEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-5, UL 508, JIS C8201-1
Important Information Attributes
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Operating Travel
- 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- Ie Rated Operational Current2
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Ie Rated Operational Current5
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Average Percentage Of Recycled Plastic Content
- 37 %
- Compatibility Code
- ZB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard
- Device Short Name
- ZB4
- Electromagnetic Emission
- class B IEC 55011
- Head Type
- standard
- Light Block Supply
- direct
- Light Source Color
- red
- Operating Torque
- 0.05 N.m NO changing electrical state
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete body/contact assembly and light block
- Range Of Product
- Harmony XB4
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 600 V 3)IEC 60947-1
- Medium Desc
- Light block with body fixing collar, Harmony XB4, metal, red, integral LED, 24V AC DC, 1NO+1NC
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 600 V 3)IEC 60947-1
- Us Rated Supply Voltage5
- 24 V AC/DC 50/60 Hz
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force2 N NC changing electrical state, 2.3 N NO changing electrical state
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Terminals Description ISO N 1(11-12)NC, (11-12)NC
Us Rated Supply Voltage224 V, 24 V AC/DC 50/60 Hz
Connections Terminals3screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Local Data StatusPublishable
ManufacturerSchneider Electric
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content21 %
Bulb Baseintegral LED
Contact Operationslow-break

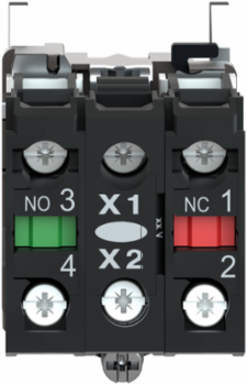

Contacts Type And Composition1 NO + 1 NC
Current Consumption18 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Important MessageAll colored LED are replaced with a single Universal LED block for use with new illuminated heads (more information at se.com/harmonyxb4 or se.com/harmonyxb5)
Light Sourceprotected LED
Mechanical Durability5000000 cycles
Package Weight Lbs70.000 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingYes
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ith Conventional Free Air Thermal Current210 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage26 kV IEC 60947-1
Stocking FlagY
Pep CodeENVPEP1808008EN
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage56 kV IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI1808008EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1808008EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level21 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP1808008EN
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- complete body/contact assembly and light block
Range Of ProductHarmony XB4
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
