Schneider Electric NSYS3D6625T PanelSeT S3D Wall Mounted Steel Enclosure, 600x600x250mm, IP66, IK08
Schneider Electric NSYS3D6625T PanelSeT S3D Wall Mounted Steel Enclosure, 600x600x250mm, IP66, IK08
- MPN: NSYS3D6625T
- PPN: SCH-NSYS3D6625T
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$406.03/ EA
Description

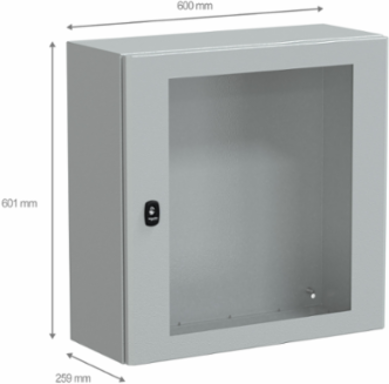

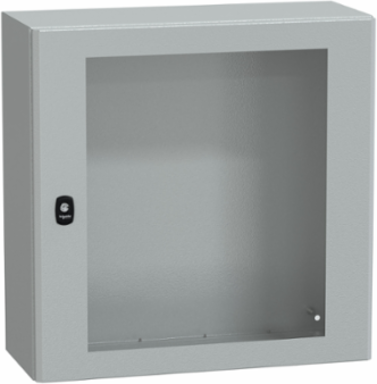

Spacial S3D wall mounted steel enclosure with glazed door. 600 x 600 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3D6625T_3D-CAD
Physical Attributes
- Enclosure Nominal Height
- 600 mm, 600 mm
- Enclosure Nominal Width
- 600 mm
ColorGray RAL 7035)
Conformance Attributes
- Product Certifications
- GL, BV, DNV, UL, cUL
StandardsIEC 62208, UL, cUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door, 1 lock, 1 cable gland plate
- Removable Parts
- door by hinges, cable gland plate by screws
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 36 kg CO2 eq., 36.28015393714171
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 75 kg CO2 eq., 75.19199469777881
- Medium Desc
- Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 600x600x250mm, IP66, IK08
- Local Publishable Date
- 2025-08-11
- Return Indicator
- N
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Type
- Glass
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 145 kg CO2 eq.
- Locking Description
- 3 points lock, 3 mm double-bar
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialbody steel, door steel and security glass
Carbon Footprint Of The Distribution Phase A430.573969327646452, 31 kg CO2 eq.
Carbon Footprint Of The Installation Phase A53.034062490595466, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeNo
Without Single Use PlasticNo
Function Option IdSTANDARD
Product Kit IdentifierN
Door Opening Sidereversible 120 °)
Electromagnetic Compatibilityelectromagnetic field immunity test
Lock Type3 points lock, 3 mm double-bar
Number Of Doorsfront face 1
Product NamePanelSeT S3D
RangePanelSeT
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platestandard
Pep CodeENVPEP1001004EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 145.08018045316243
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
