Weidmuller 9457381000 SAIL-M8BW-3-10U
Weidmuller 9457381000 SAIL-M8BW-3-10U
- MPN: 9457381000
- PPN: WDM-9457381000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$18.18/ EA
Description

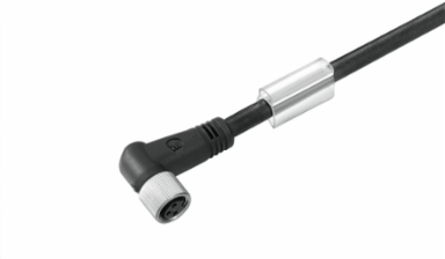

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 10 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
- Approvals
- CSA, CULUS
- UL File Number Search
- E307231
ROHSConform

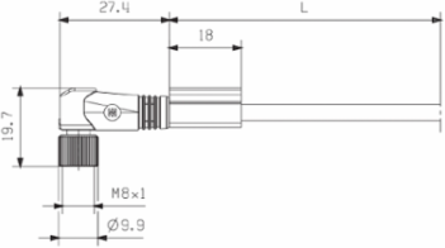

Dimensions And Weights
- Net weight
- 208 g
Standards
- Connector standard
- IEC 61076-2-104
- Certificate no. (cULus)
- E307231
Certificate No. (CSA)200039-2372994
General Technical Data
- AF size
- 12 mm
- Connection thread
- M8
- Threaded ring material
- Brass, nickel-plated
- Protection degree
- IP65, IP66, IP67, IP68, when screwed in
- LED
- No
- Rated current
- 4 A
- Temperature range of housing
- -25…+80 °C
- Plugging cycles
- ≥ 100
- jumpered
- No
VersionSocket, angled
Housing main materialPUR
Codingnone
Contact surfaceGold-plated
Rated voltage60 V
Insulation strength108 Ω
Tightening torqueM8: 0.5 - 0.6 Nm
Pollution severity3
Technical Specifications For Cable

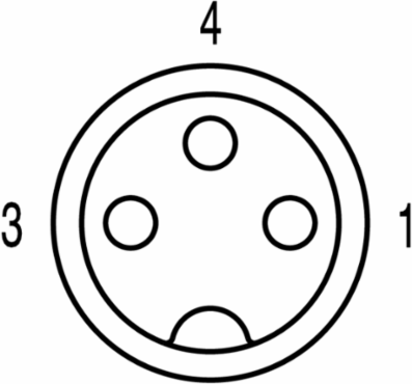

- Number of poles
- 3
- Outside diameter
- 4.1 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Configurable cable length
- No
- Resistance to oils
- in accordance with IEC 60811:404
Core cross-section0.25 mm²
Cable length10 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...80 °C
Outer cladding in accordance with UL AWM style20233/21198 (80 °C / 300 V)
Torsion resistance360 °/m
Bending radius, min., moving10 x cable diameter
Speed5 m/s
Resistant to welding beadsNo
Hydrolysis and microbe resistantYes
Resistance to spread of flameIn accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
Operating temperature, min.-25 °C
