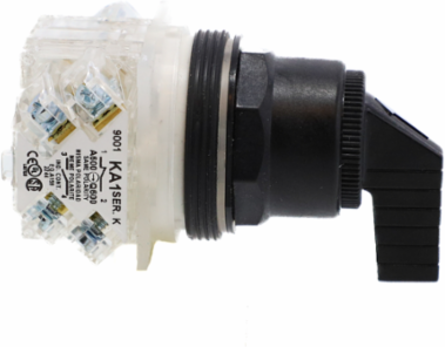

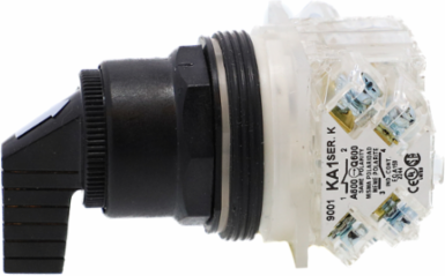

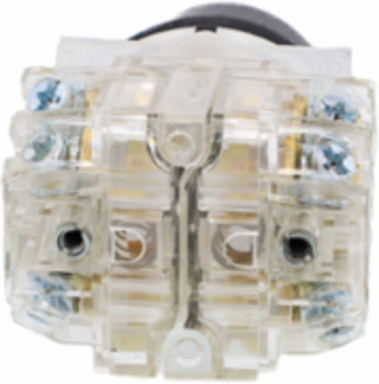

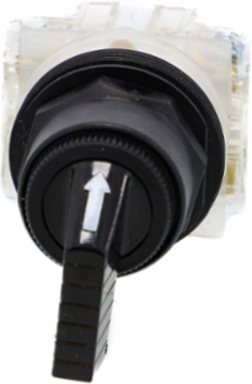

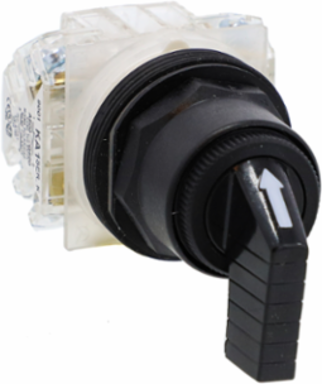

Square D 9001SKS46FBH2 Selector Switch, Harmony 9001SK, 30 mm, 3 Positions, Stay Put, 600V AC, IP66
Square D 9001SKS46FBH2 Selector Switch, Harmony 9001SK, 30 mm, 3 Positions, Stay Put, 600V AC, IP66
- MPN: 9001SKS46FBH2
- UPC: 785901601869
- PPN: SCH-9001SKS46FBH2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$176.31/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This selector switch is operated by rotating the gloved hand knob." "It is a 3-position maintained operator selector switch with a rated voltage of 600V AC and a rated current of 10A." "It has 2 NO and 2 NC contacts." "It is furnished with screw clamp terminals for electrical connection." "It is an IP66 and NEMA 1/2/3/3R/4/6/12/13 rated product." "This selector switch is fitted with plastic bezel and black gloved hand knob." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120820EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Contacts Type And Composition
- 2 C/O
- Cam Profile
- 6
- Mounting Diameter
- 30 mm
- Type Of Operator
- stay put
- Size
- 30 mm
Bezel Materialplastic
Operator Position Information3 positions
Operator Profilelong handle
Cap/Operator Or Lens Colourblack
Device Presentationcomplete product
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Protective TreatmentTC
Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typeselector switch
