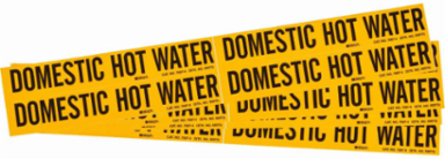

Brady 103549 Self-Adhesive Pipe Marker: DOM HOT WATER, 1.125" H x 7" W, Pack of 5 Each, Fits Pipes 0.75" Dia. Thru 2.375" Dia.
Brady 103549 Self-Adhesive Pipe Marker: DOM HOT WATER, 1.125" H x 7" W, Pack of 5 Each, Fits Pipes 0.75" Dia. Thru 2.375" Dia.
- MPN: 103549
- UPC: 754473175337
- PPN: BRD-103549
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$24.39/ EA
Description

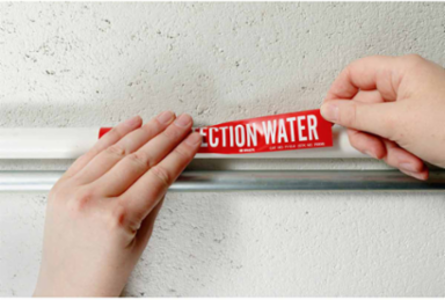

Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
Features
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 4 pipe markers measure 1-1/8 in. x 7 in., come with four markers per card and fit pipe diameter 3/4 in. to 2-3/8 in.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black on Yellow
- Enables Industry Compliance
- ANSI A13.1-2007
- Language
- English
- Pipe Marker Style
- 4
- Primary Noun, Basic Function
- Pipe Marker
- Quantity per Card or Sheet
- 4
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Vinyl
- SAP B-Number
- B-946
- Character Height (in/ft/yd)
- 0.75 in
- Dimensions (Metric)
- 28.6 mm H
- Height (in/ft/yd)
- 1.125 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 2.375 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 0.75 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 0.75" Dia. Thru 2.375in Dia.
- Sign Size-General
- 1.125 in x 7 in
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 7 in
Brand NameBrady®
Compatible Surface TypesGeneral
FinishGloss
Pipe Marker Mounting StyleSelf-Adhesive
Pre-Printed Areas on LabelPipe Contents
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Reflective TypeNon-Reflective
Text LegendDOM HOT WATER
Brady Material NumberB-946
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Water-Resisitant
Average Outdoor Durability8 to 10 Years
Dimensions1.125 in H x 7 in W
Dimensions 21.125 in H x 7 in W
Height (mm/cm/m)28.6 mm
Maximum Outside Pipe Diameter (mm/cm/m)60.33 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Outside Pipe Diameter (mm/cm/m)19.05 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)1.125 in H x 7 in W
Size4
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)177.8 mm
