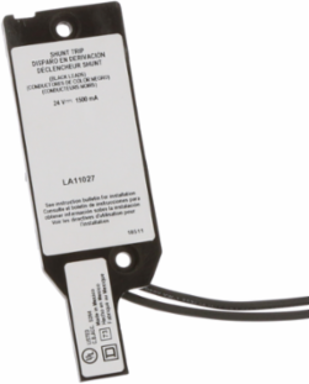

Schneider Electric LA11027 Circuit breaker accessory, PowerPacT LA/LH/Q4, shunt trip, 24VDC
Schneider Electric LA11027 Circuit breaker accessory, PowerPacT LA/LH/Q4, shunt trip, 24VDC
- MPN: LA11027
- UPC: 785901789345
- PPN: SCH-LA11027
- UNSPSC: 39121601
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1333.18/ EA
Description
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers offer many field installable accessories to increase the breaker's application versatility. This shunt trip is an offered accessory for LA/LH/Q4 breakers. Shunt trip accessory is used to trip the breaker from a remote location by trip coil energized from another circuit. The control voltage for operation is 24VDC. This accessory is UL listed.
Features
- LA, LH, Q4 molded cases circuit breaker shunt trip, 24VDC
- Shunt trip accessory is used to trip the breaker from a remote location by trip coil energized from another circuit
- Field installable shunt trip is installed, interchanged, replaced without affecting the breaker’s UL listing
- Field installed accessories shipped separately
- Circuit breakers are ordered and shipped separately for field installation
- The enclosures are not compatible with earth-leakage or ground-fault modules.
- L-frame circuit breakers with MicroLogic trip units can be used with these enclosures with some limitations.
- PowerPacT H Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5
Specifications
Important Information Attributes
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Halogen Free Status
- Halogen free plastic parts product
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1410004EN
Local Publishable Date2025-11-18
TraceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Package Weight Lbs284.992 g
ReturnabilityYes
Tightening Torque0.7-1 N.m
Medium DescCircuit breaker accessory, PowerPacT LA/LH/Q4, shunt trip, 24VDC
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1410004EN
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Environmental DisclosureENVPEP1410004EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
