Spacial SM Compact Enclosure 1800x600x400 mm IP55 IK10
Schneider Electric

Schneider Electric NSYSM18640P Spacial SM Compact Enclosure 1800x600x400 mm IP55 IK10

  • MPN: NSYSM18640P
  • PPN: SCH-NSYSM18640P
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2356.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

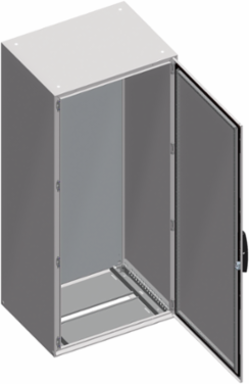

    Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 600 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

    Documentation & Downloads

    Specifications

    Key Specifications

    Removable Parts
    door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
    Product Or Component Type
    compact enclosure
    Device Composition
    1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door
    Range
    Spacial
    Device Application
    multi-purpose
    Installation Accessory Typefloor-standing
    Product NameSpacial SM

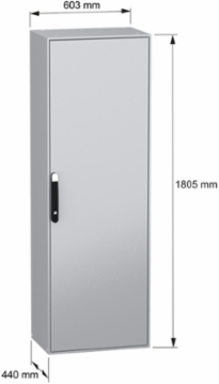

    Enclosure Nominal Height1800 mm
    Enclosure Nominal Depth400 mm
    Enclosure Nominal Width600 mm

    Complementary

    Accessibility For Operation
    front
    Lock Type
    4 points lock, handle with 5 mm double bar insert
    Door Opening Side
    reversible 120 °)
    Body Type
    front part forming a rigid frame with welded corners || single piece body with welded rear panel
    Surface Finish
    epoxy-polyester powder
    Colour
    enclosure grey RAL 7035) || handle black RAL 9005)
    Mounting Plate Description
    plain
    Type Of Gland Platestandard
    Net Weight104.713 kg
    Number Of Doorsfront 1
    Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
    Cable Entry1 entry
    Door Typeplain

    Environment

    Product Certifications
    UL || DNV || BV
    Standards
    IEC 62208
    Ik Degree Of ProtectionIK10 IEC 62262
    Ip Degree Of ProtectionIP55 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP110923EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity Profile
    N/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
