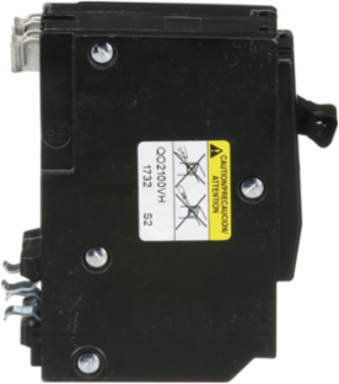

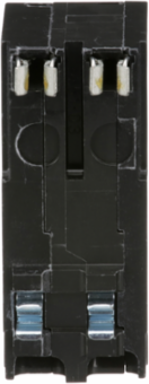

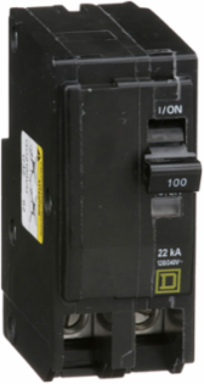

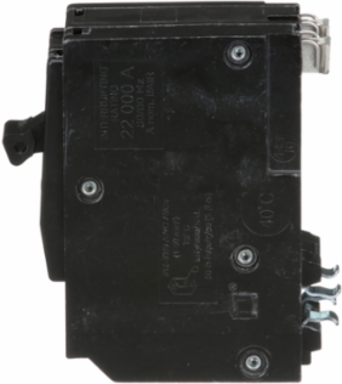

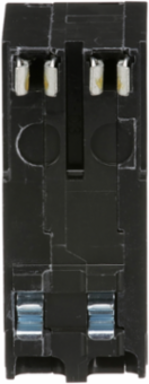

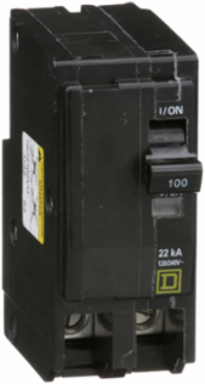

Schneider Electric QO2100VH Mini Circuit Breaker 100A 2 Pole Plug-in Mount 22kA 120/240V AC
Schneider Electric QO2100VH Mini Circuit Breaker 100A 2 Pole Plug-in Mount 22kA 120/240V AC
- MPN: QO2100VH
- UPC: 785901054924
- PPN: SCH-QO2100VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$204.62/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 100 A
- Interrupt Rating
- 22 kA
- Circuit Breaker Type
- Standard
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N.m

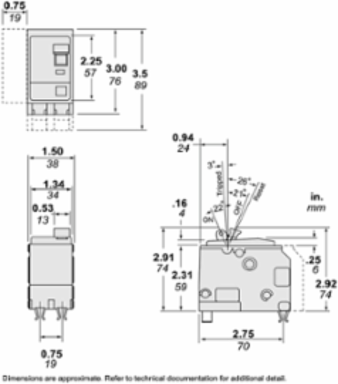

- Width
- 38 mm (1.50 in)
- Net Weight
- 0.295 kg (0.65 lb)
- Ambient Rating
- 40 °C (104 °F)
- Range of Product
- QO
- Product Or Component Type
- Miniature circuit-breaker
Voltage120/240 V AC
Number of Poles2
RatingsHACR rated
Mounting TypePlug-in
Wire SizeAWG 4 to AWG 2/0 copper or aluminum
Height89 mm (3.50 in)
Depth74 mm (2.91 in)
Product CertificationsUL listed, CSA Certified, RoHS Compliant with Exemptions
MaterialHalogen free, Mercury free
Number Of Spaces Required2
