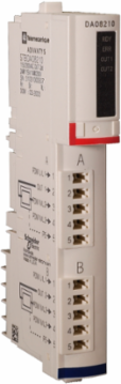

Schneider Electric STBDAO5260K standard digital output kit STB - 115 V AC - 2 O
Schneider Electric STBDAO5260K standard digital output kit STB - 115 V AC - 2 O
- MPN: STBDAO5260K
- PPN: SCH-STBDAO5260K
- UNSPSC: 32151601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$215.55/ EA
Description
This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard digital output kit for I/O base and power distribution modules. The kit consists of a base, a module, a 5-terminal spring clamp connector, and a 5-terminal screw-type connector. It supports 2 discrete outputs at an output voltage of 115 VAC. This product weighs 0.067 kg. Ideal for environment such as packaging, bottling, assembly, distribution, textile, printing, semiconductor machines. It is UL, CSA, and FM Class 1 Division 2 certified and conforms to IEC 61131-2 and IEC 60664-1 standards. This is compatible with I/O base STBXBA2000 and power distribution module STBPDT2100/2105. It is designed to be mounted on DIN rail. Modicon STB range is simple, open and flexible, meeting your needs in every stage of the product life cycle. They save you time and money by simplifying maintenance and diagnostic tasks.
Features
- Compatible with various Modicon PLCs
- Supports multiple output configurations
- Enables precise control of external devices
- Designed for robust performance in various industrial environments
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL, CSA, UL, FM Class 1 Division 2
StandardsIEC 61131-2
Complementary Attributes
- Maximum Leakage Current
- 2 mA AC at state 0
- Minimum Load
- 1 mA
Absolute Maximum Voltage132 V
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBXBA2000 base, STBDAO5260 module, STBXTS1100, 5-terminal screw type connector, STBXTS2110, 5-terminal spring clamp connector
- Vibration Resistance
- +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail, 5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
- Local Data Status
- Publishable
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Device Application
- Industrial Application
- Front Installation Possible
- false
- Isolation Between Channels And Bus
- 1780 Vrms for 1 minute
- Network Type
- AC/DC
- Overvoltage Category
- II
- Power Supply Type
- power distribution module
- Product Or Component Type
- standard digital output kit
- Radio Standard Bluetooth
- false
- Radio Standard GSM
- false
- Range Of Product
- Modicon STB distributed I/O solution
- Returnability
- No
- Supporting Protocol For As Interface Safety At Work
- false
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Sustainable Packaging
- No
- Wall Mounting Direct Mounting Possible
- false
- Appendant Operation Agent Ex Ib2
- false
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Certified For Ul Hazardous Location Group A Acetylene2
- false
- Certified For Ul Hazardous Location Group C Ethylene2
- false
- Certified For Ul Hazardous Location Group E Metal Dusts2
- false
- Certified For Ul Hazardous Location Group G Non Conductive Dust2
- false
- Medium Desc
- standard digital output kit STB - 115 V AC - 2 O
- Product Kit Identifier
- N
- Appendant Operation Agent Ex Ib3
- false
- Certified For Ul Hazardous Location Group B Hydrogen3
- false
- Certified For Ul Hazardous Location Group F Carbonaceous Dust3
- false
- Isolation Between Channels
- 1780 Vrms for 1 minute
- Global Commercial Status
- Commercialised
- Certified For Ul Hazardous Location Group D Propane 4
- false
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (OUT1 to OUT2), 1 LED (red) for module error (ERR)
Fallback Statusstate 0 basic NIMs, user configurable standard NIMs
Local Publishable Date2026-01-12
ServiceabilityNo
Field Service DivisionIDIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Market SegmentationIndustrial
Electrical Connectionscrew terminal
IO Link Master Presentfalse
MarkingCE
Optical Interface Presentfalse
Package Weight Lbs143.000 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Rack Assembly Possiblefalse
Radio Standard GPRSfalse
Radio Standard UMTSfalse
Resetmanual or automatic reset COM fault
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asifalse
Supporting Protocol For Data Highwayfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Ethernet Iptrue
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Supporting Protocol For TCP IPtrue
Typical Current Consumption70 mA 5 V DC
Appendant Operation Agent Ex Ia2false
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Certified For Ul Hazardous Location Group B Hydrogen2false
Certified For Ul Hazardous Location Group D Propane2false
Certified For Ul Hazardous Location Group F Carbonaceous Dust2false
Fieldbus Connection Over Separate Bus Coupler Possibletrue
Stocking FlagY
Appendant Operation Agent Ex Ia3false
Certified For Ul Hazardous Location Group A Acetylene3false
Certified For Ul Hazardous Location Group E Metal Dusts3false
Certified For Ul Hazardous Location Group G Non Conductive Dust3false
Digital Outputs Configurablefalse
Certified For Ul Hazardous Location Group C Ethylene 4false
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility
- power distribution module STBPDT2100/2105, I/O base STBXBA2000
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 % 60-60 °C without condensation
Ambient Air Temperature For Storage-40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation0-60 °C without derating)
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- standard digital output kit
Range Of ProductModicon STB distributed I/O solution
Output Attributes
- Discrete Output Current
- 1000 mA at 60 °C, 2000 mA at 30 °C
- Response Time On Output
- 10 ms off to on, 10 ms on to off
- Discrete Output Type
- triac
- Discrete Output Voltage Type
- AC
Discrete Output Number2 triac at 115 V AC, 2
Discrete Output Logicpositive logic (source)/negative logic (sink)
Discrete Output Voltage115 V ACtriac
Output Voltage19.2...30 V DC
Surge Protection And Filtering Attributes
- Surge Current
- 20 A 40 ms, 30 A 20 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 70 mm
