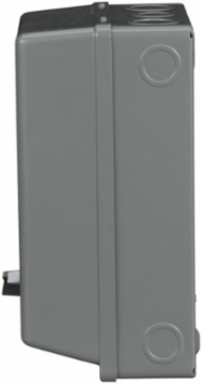

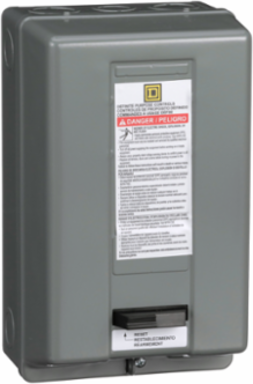

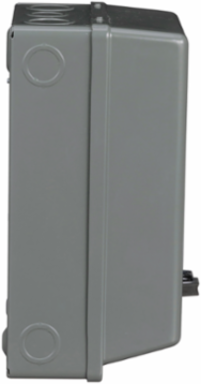

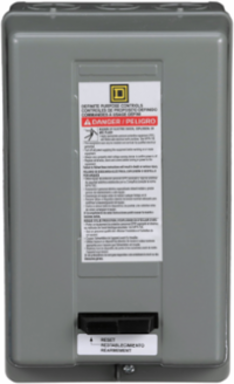

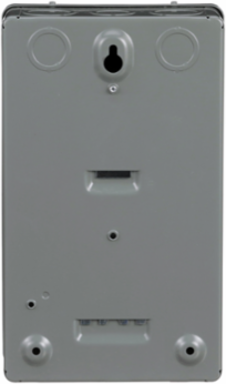

Schneider Electric 8911DPSG43V09 NEMA 1 Definite Purpose Starter, 40A, 3 Pole, 208-240V AC Coil
Schneider Electric 8911DPSG43V09 NEMA 1 Definite Purpose Starter, 40A, 3 Pole, 208-240V AC Coil
- MPN: 8911DPSG43V09
- UPC: 785901024712
- PPN: SCH-8911DPSG43V09
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$481.26/ EA
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Thermal Overload Type
- melting alloy
- Range Of Product
- DPS
- Locked Rotor Rated Current
- 240 A 230 V AC || 200 A 460 V AC || 160 A 575 V AC
- Enclosure Material
- painted sheet steel
Nema Degree Of ProtectionNEMA 1
Number Of Thermal Units Required3
Poles Description3P
Specifications
- [Uc] Control Circuit Voltage
- 220 V AC 50 Hz || 208...240 V AC 60 Hz
- [In] Rated Current
- 40 A
- Network Number Of Phases
- 3 phases
Motor Power Hp3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 3 phases || 7.5-7.5 hp 230 V AC, 1 phase || 20-20 hp 460 V AC, 3 phases || 25-25 hp 575 V AC, 3 phases
Product Or Component TypeDefinite Purpose Starter
[Ue] Rated Operational Voltage600 V AC
Contractual warranty
- Warranty
- 18 months
