Adaptaflex AL42/PG36/A/BL Conduit Fitting 42mm Nominal Size with PG36 Thread, Polyamide, Black
Adaptaflex AL42/PG36/A/BL Conduit Fitting 42mm Nominal Size with PG36 Thread, Polyamide, Black
- MPN: AL42/PG36/A/BL
- UPC: 786210280929
- PPN: T-B-AL42/PG36/A/BL
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$16.10/ EA
Description

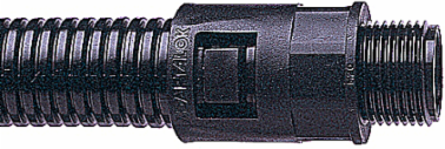

Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 42mm, PG36 Thread, Polyamide (Nylon) 66, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- PG36
- Total length
- 41.5mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter42mm
ModelStraight
Construction typeExternal thread
Thread typeOther
Thread length12.2mm
Total height50mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with PG Threads
SizeNC 42mm
ColorBlack
Cable EntryPG36 Thread
Packaging
- Inner Quantity
- 2
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity50
Weight Uom0.09 lbs. Each
