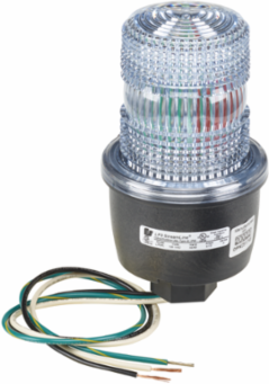

Federal Signal LP3PL-120C StreamLine LED Light, Low Profile, UL and cUL, 120VAC, NPT Pipe Mount, Clear
- MPN: LP3PL-120C
- UPC: 782979224839
- PPN: FDS-LP3PL-120C
- UNSPSC: 39111706
CAD
$283.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Model LP3L low profile LED light is offered in four mounting configurations: LP3PL with an integrated 1/2" NPT pipe mount, LP3ML features an integrated 1/2" NPT male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP3SL features a three hole surface mounting configuration.Models LP3ML, LP3SL, and LP3TL include a surface mount gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3ML, LP3SL and LP3TL when installed on a panel.All models include the vibration resistant, double contact bayonet style 50,000 hour LED module.Like all StreamLine® products, the LP3L is designed with OEM applications in mind.
Features
- Available in 24VDC and 120VAC
- T-mount (TL), integrated 1/2-inch NPT pipe mount (PL), 1/2-inch NPT male pipe mount (ML), or surface mount (SL)
- Five lamp/lens colors: Amber, Blue, Clear, Green, and Red
- 50,000 Hour LED
- Screw on lens
- Indoor/outdoor use
- Optional wire lens guard
- Type 4X, IP66 enclosure - LP3SL, LP3PL, LP3ML
- Type 4X, IP55 enclosure - LP3TL
- IP69K compliant - LP3SL, LP3PL, LP3ML
- CSA Certified
- UL and cUL Listed
- CE and UKCA Certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Diameter (in)
- 3.13
- Flash Pattern Type
- Steady
- Lens Color
- Clear
- Operating Current Amps
- 0.6
- Visual Signals Lens Color
- Clear
- Visual Signals Operating Voltage
- 120VAC
- Height
- 5.7 in, 14.478 cm
Weight0.46 lbs
Certification ListingCSA, UL, cUL
Diameter (mm)79.502
AvailabilityShips in 10 business days
Mount Type1/2-Inch NPT Pipe
Operating Temp.-31˚ to +150˚F (-35˚ to +66˚C)
Visual Signals Mount Type1/2-Inch NPT Pipe
Depth5.7 in, 14.478 cm
Diameter3.13 in, 7.9502 cm
