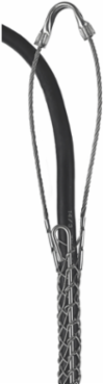

Hubbell Wiring Device-Kellems 02203017 Support Grip, Single Eye, 1-1/4 Inch, Tin-Coated Bronze, Grit 1,610 lb.
Hubbell Wiring Device-Kellems 02203017 Support Grip, Single Eye, 1-1/4 Inch, Tin-Coated Bronze, Grit 1,610 lb.
- MPN: 02203017
- UPC: 783585303079
- PPN: HBL-02203017
- UNSPSC: 39121719
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$162.03/ EA
Description
Support Grips, Single Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 1.00-1.24"
Features
- Single eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Specifications
Specifications
- Country of Origin
- China
- Cable Diameter Range
- 1 in-1.24 in
- Industry Standard(s)
- CSA Certified
- Standards - RoHS Compliance Status
- CM
- Cable Size
- 1.00"-1.24" (2.54-3.15)
- Standard
- CSA Certified
- General Literature Asset 1 Display Text
- Education Application Guide
- General Literature Asset 3 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Standard Duty Series
- BOX SIZE
- 2.500x28.250x13.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585303079
- Case Weight
- 48.000 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 424.000 lb.
Approx Breaking Strength1,610 lb.
Width3.200 in
PerformanceMechanical - Approximate Breaking Strength - 1,610 (7,161);Mechanical - Working Load - 161 (716.1) Lbs. (N)
ApplicationSingle Eye
Special FeaturesSplit Mesh- Rod Closing
TypeSingle Eye
General Literature Asset 2 Display TextEntertainment Product Solution Guide
StyleSplit Mesh, Rod Closing
Description - InvoiceSGL EYE, SUP GRIP, 1.0-1.2"; GALV, ROD
Harmonization Code7419805050
MSDS FlagNo
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialBronze, Tin Coated
Base Unit of MeasureEA
Carton - Gross Weight per Pack45.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585303078
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
