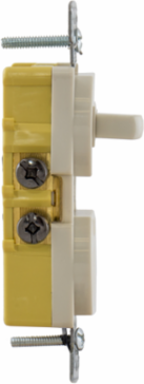

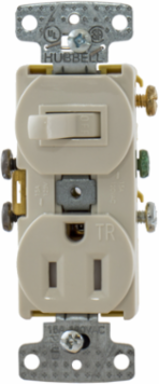

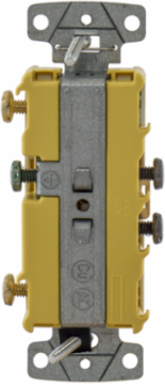

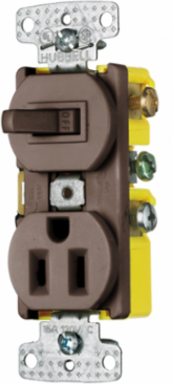

Bryant RC108LATR Toggle Switch & Tamper Resistant Receptacle, 15A 120VAC, Side Wired
Bryant RC108LATR Toggle Switch & Tamper Resistant Receptacle, 15A 120VAC, Side Wired
- MPN: RC108LATR
- UPC: 883778302268
- PPN: HBL-RC108LATR
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.68/ EA
Description
One Single Pole Toggle One Single TR Receptacle Combination Device, Residential 15A 120VAC, Self Grounding, Side Wired
Features
- Quiet snap action mechanism
- Self-grounding staple is standard
- Elongated strap with continuous plaster ears
- Tamper Resistant Receptacle
Specifications
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Country of Origin
- China
- Width
- 2.000 in
- Performance
- Environmental - Operating temperature - -20°C to 60°C
- Actuator
- Toggle
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Single Pole
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- UL Listed
- Wattage
- 1800
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Connectivity
- Side Wired
- Number Of Poles
- 1) Single Pole
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Mounting Screws
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesTamper Resistant Receptacle
Voltage Rating120 VAC
Voltage Rating Description120 VAC
Conduit ConnectionNone
Display SizeStandard Size
Description - InvoiceCOMBO, 15A SP & 15A125V RCPT TR, LA
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
BOX SIZE2.500x9.100x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778302268
Case Weight8.700 lb.
Lowest Level UOMEach
