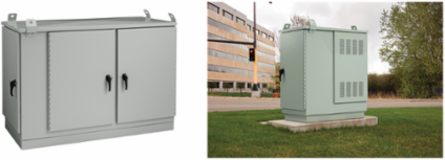

nVent Hoffman T504030PM3 OPAL Pad-Mount DSL Cabinet, 48.50x43.54x30.00, Lt Gray, Aluminum
nVent Hoffman T504030PM3 OPAL Pad-Mount DSL Cabinet, 48.50x43.54x30.00, Lt Gray, Aluminum
- MPN: T504030PM3
- UPC: 783510218638
- PPN: HOF-T504030PM3
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
OPAL Pad-Mount Cabinets are pad-mounted and protect communications equipment in various environments. This OPAL Pad-Mount DSL Cabinet, T504030PM3 item measures 48.50x43.54x30.00 inches with a material of Aluminum colored Lt Gray.
Features
- Offered with three or five doors mounted for front, rear and side access to equipment
- Five-door model has two equal compartments and one side compartment
- Side compartment is ideal for cable entry, power distribution and load center
- Copper bonding bars included with cabinet
- Rack angles have EIA universal spaced square holes and are infinitely adjustable front-to-back in compartment
- Rack angles are predrilled for bend radius spools
- Each compartment is capable of either 19- or 23-inch rack angle positioning
- Top has integral solar shield with formed angles providing a peaked roof to deflect rain water to the sides of the cabinet
- L-handle is padlockable
- Bottom holes provided for bolting cabinet to concrete pad
- All doors have door switch, door (wind) stops and vault-style locking system
- Grounding and bonding studs provided on all doors and body
- Three cable entry boots provided in side compartment
- Four cable entry gland plates provided between side and central compartments
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,106
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 3
- IP Rating
- IP66
- Weight
- 250
- Material
- Aluminum
- Color
- Lt Gray
Height (H)1,232
Depth (D)762
Color CodeRAL 7035
Rack Units Per Bay22
NEMA Rating12 Indoor, dust-resistant
Sub BrandOpal
FinishLt Gray
Downloads
