Schneider Electric GV4AS287 Voltage release, TeSys GV4, MX coil, 220 to 240VAC 50Hz, 208 to 277VAC 60Hz
Schneider Electric GV4AS287 Voltage release, TeSys GV4, MX coil, 220 to 240VAC 50Hz, 208 to 277VAC 60Hz
- MPN: GV4AS287
- PPN: SCH-GV4AS287
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$224.20/ EA
Description

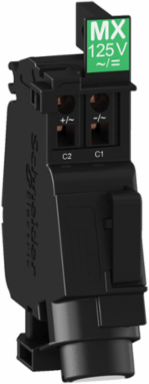

TeSys GV electrical trip unit, MX shunt trip, 208-240V AC 50Hz/60Hz, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000098_3D-CAD&p_File_name=MCADPP0000098_2D-top.dxf
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Uc Control Circuit Voltage
- 277 V AC 60 Hz, 220...240 V AC 50 Hz, 208...240 V AC 60 Hz
- Maximum Hold In Power Consumption In Va
- 10 VA
- Ui Rated Insulation Voltage
- 277 V IEC 60947-1
Impulse Duration>= 20 ms
Maximum Inrush Power In Va6 VA
Important Information Attributes
- Threshold Tripping Voltage
- < 0.7 Un possible opening, < 0.7 Un possible opening, 0.7...1.1 Un failsafe opening, < 0.7 Un possible opening, < 0.7 Un possible opening
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.06405
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 1.0868307692307693
- Medium Desc
- Voltage release, TeSys GV4, MX coil, 220 to 240VAC 50Hz, 208 to 277VAC 60Hz
- Local Publishable Date
- 2025-02-26
- Return Indicator
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311043EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- control
- Energy Efficiency Optimized
- False
- Maximum Inrush Power In Va
- 6 VA
- Mounting Mode
- internal mounting
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- Yes
- Voltage Release Type
- shunt trip release
- Connections Terminals
- spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
Carbon Footprint Of The Distribution Phase A40.005492307692307692, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.022595999999999998, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0.00034253
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
TraceabilityNo
Weee ApplicabilityFinished product
Legacy Weee ScopeIn
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameMX
Halogen Free StatusProduct contains halogen above thresholds
Mechanical Durability20000 cycles
Operating Time< 50 ms
Product Or Component Typevoltage release
RangeTeSys
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2311043EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
