Schneider Electric GV4APN04 TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm

TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm
TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm
TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm
TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm
TeSys Deca Extended Rotary Handle - IP65 Protection, Adjustable 214-627 mm
  • MPN: GV4APN04
  • PPN: SCH-GV4APN04

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$448.38/ EA

Description

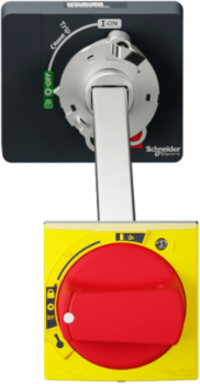

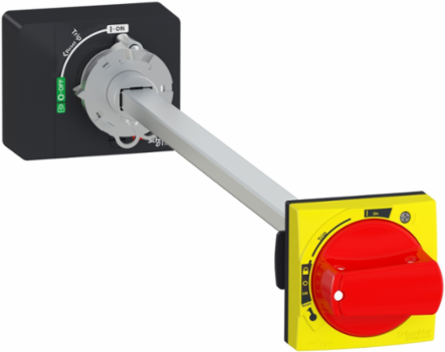

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
