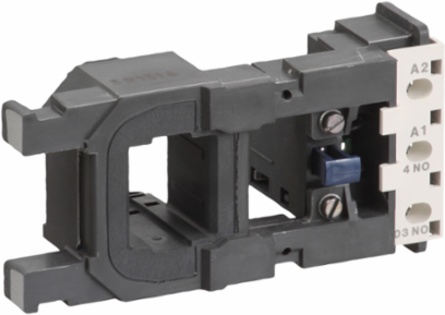

Schneider Electric LX1FF020 TeSys F - contactor coil - LX1FF - 20..24 V AC 50/60 Hz
Schneider Electric LX1FF020 TeSys F - contactor coil - LX1FF - 20..24 V AC 50/60 Hz
- MPN: LX1FF020
- PPN: SCH-LX1FF020
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$495.38/ EA
Description
TeSys F AC coil 24V 60Hz (voltage code B6), for TeSys F 3-pole and 4-pole contactors LC1 F115, F150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Features
- Reliable for wide voltage band under high temperature
- Excellent durability with high operating rates up to 2400 cycles/hour
- Green Premium compliant
Specifications
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out 0.35...0.55 Uc 50/60 Hz 55 °C), operational 0.85...1.1 Uc 50/60 Hz 55 °C)
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Hold In Power Consumption In VA
- 45-45 VA 50 Hz cos phi 0.3 (at 20 °C), 55-55 VA 60 Hz cos phi 0.3 (at 20 °C)
- Operating Time
- 23...35 ms closing, 5...15 ms opening
- Carbon Footprint Of The Distribution Phase A4
- 0.049774529084509175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0003999825873412172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 69 kg CO2 eq., 68.82266544572599
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 12-16 W 50 Hz
- Package Weight Lbs
- 481.0 g
- Product Or Component Type
- contactor coil
- Range Of Product
- TeSys F
- Sustainable Packaging
- Yes
- Medium Desc
- TeSys F - contactor coil - LX1FF - 20..24 V AC 50/60 Hz
- Product Kit Identifier
- N
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; China, CN
- Inductance Of Closed Circuit
- 0.03 H
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Inrush Power In VA550-550 VA 50 Hz cos phi 0.3 (at 20 °C), 650-650 VA 60 Hz cos phi 0.3 (at 20 °C)
Uc Control Circuit Voltage220 V AC 50 Hz, 24 V AC 60 Hz
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.28693227533080673
Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.9122731131826548
Uc Control Circuit Voltage520 V AC 50 Hz, 24 V AC 60 Hz
Local Publishable Date2025-12-09
TraceabilityNo
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Device Short NameLX1FF
Mechanical Durability10 Mcycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityNo
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Stocking FlagY
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Energy Model Manufacturing A1 A3 2China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; China, CN
Average Resistance0.2 Ohm 20 °C
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -5-55 °C
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product CompatibilityLC1F115, LC1F150
Recycled Metal Content At Cr Level0 %
Carbon Footprint70.0720453459113
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys F
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
