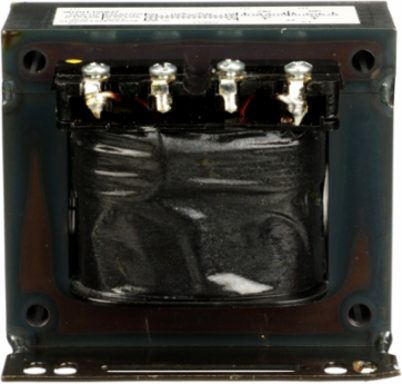

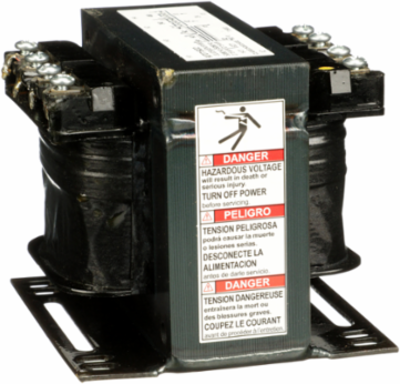

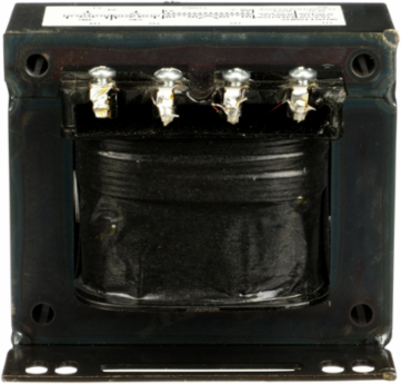

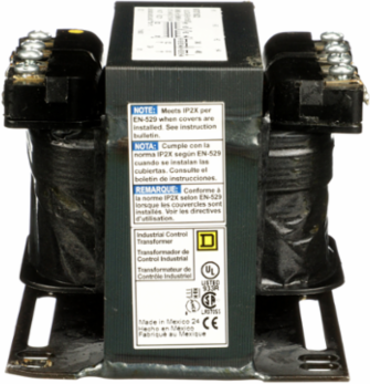

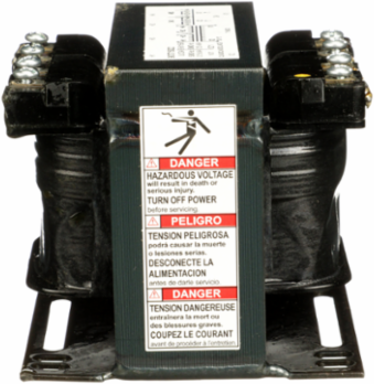

Square D 9070T150D2 Type T Industrial Control Transformer, 150VA, 240x480V Primary, 24V Secondary, 55°C Rise
Square D 9070T150D2 Type T Industrial Control Transformer, 150VA, 240x480V Primary, 24V Secondary, 55°C Rise
- MPN: 9070T150D2
- UPC: 785901905080
- PPN: SCH-9070T150D2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$130.54/ EA
Description
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 150VA and is single phase. It has a 240/480 V primary voltage and 24 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC1. This transformer complies to UL, CE & CSA standards.
Specifications
Environment
- Product Certifications
- CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Insulation Temperature
- 105 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Complementary
- Height
- 3.2 in
- Rated Power In Va
- 150 VA UL || 150 VA CSA || 150 VA NOM || 150 VA CE
- Material
- copper: winding
- Width
- 3.75 in
- Product Compatibility
- FSC1
Temperature Rise55 °C
Network Number Of Phases1 phase
Electrical Connectionscrew clamp terminals
Depth3.59 in
Primary Voltage240 x 480 V 24 V
Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
