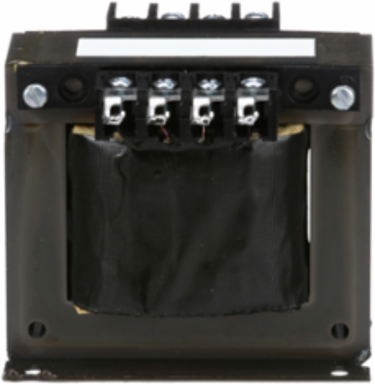

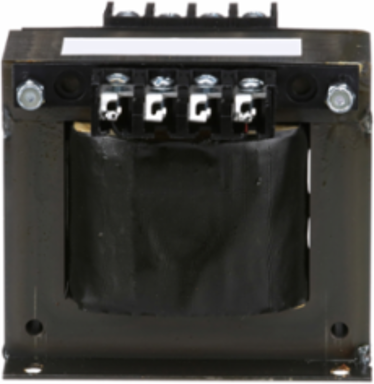

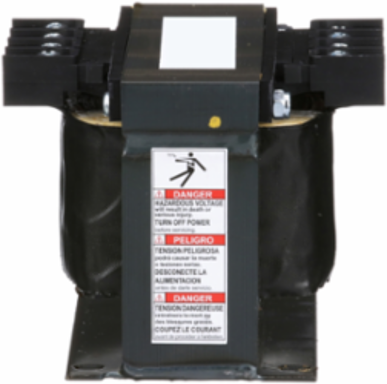

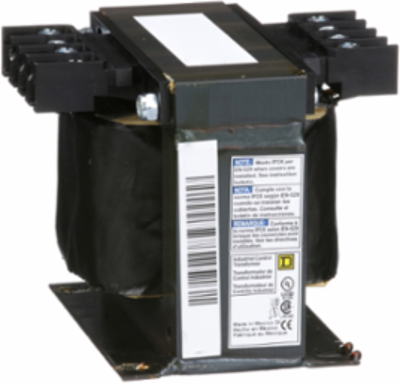

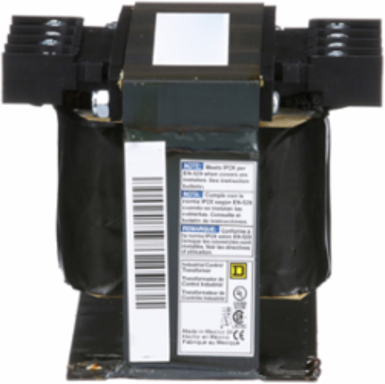

Square D 9070T300D14 Transformer, Type T, industrial control, 300VA, 1 phase, 208V primary, 24V secondary, 80C rise
Square D 9070T300D14 Transformer, Type T, industrial control, 300VA, 1 phase, 208V primary, 24V secondary, 80C rise
- MPN: 9070T300D14
- UPC: 785901416005
- PPN: SCH-9070T300D14
- UNSPSC: 39121026
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$171.94/ EA
Description
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 300VA and is 1 phase. It has a 208V primary voltage and 24V secondary voltage. It also has a temperature rise of 80 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
Features
- Designed with various temperature classes
- 50/60 Hz rated
- Customer installed accessories
- UL Listed, cUL, CSA certified
Specifications
Conformance Attributes
- Product Certifications
- CSA file LR37055 guide 184-N-90, UL listed file E61239
Complementary Attributes
- Rated Power In VA
- 300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE
Important Information Attributes
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2023-06-14
- Device Type
- Transformer - dry
- Traceability
- No
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Energy Efficiency Optimized
- False
- Material
- copper: winding
- Phase
- 1 phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- T
- Sustainable Packaging
- No
- Medium Desc
- Transformer, Type T, industrial control, 300VA, 1 phase, 208V primary, 24V secondary, 80C rise
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Local Publishable Date2025-11-13
Pre Comm Date2023-06-14
ServiceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionscrew clamp terminals
Insulation Temperature130 °C
Package Weight Lbs3.901 kg

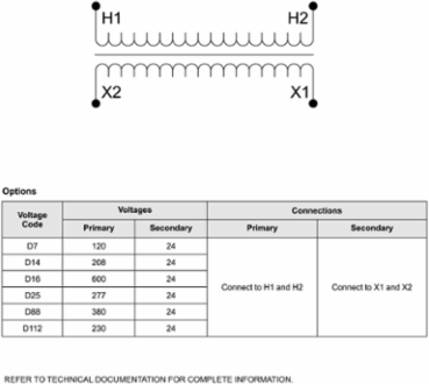

Primary Voltage208 V 24 V
Product Or Component TypeIndustrial Control Transformer
ReturnabilityNo
Temperature Rise80 °C
Stocking FlagY
Pep CodeENVPEP1308008EN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1308008EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- FSC2
- Pep Code
- ENVPEP1308008EN
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Contractual Warranty Attributes
- Warranty Period
- 10 Years
Warranty10 Years
Specifications

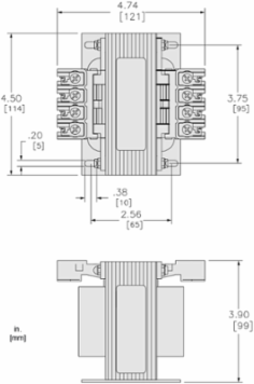

- Depth
- 4.74 in
