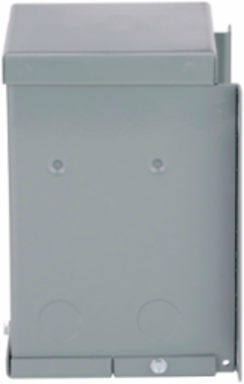

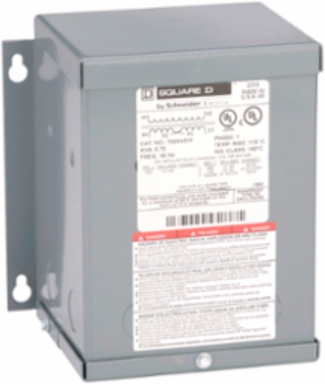

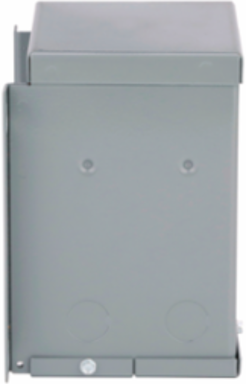

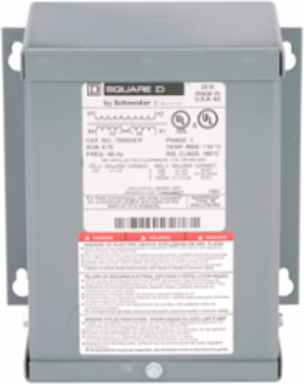

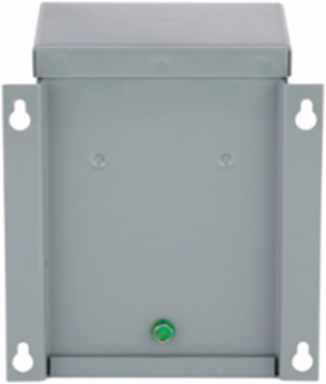

Schneider Electric 750SV51F Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R

Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R
Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R
Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R
Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R
Dry Sealed Transformer 0.75 kVA 600V Primary 120/240V Secondary NEMA 3R
  • MPN: 750SV51F
  • UPC: 785901020387
  • PPN: SCH-750SV51F

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$895.71/ EA

    Description

    Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.75 KVA. This transformer has a primary voltage of 600 V and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 6.69 in (H), 6.19 in(W), 4.69 in (D). This product complys to UL & CSA standards.

    Specifications

    Environment

    Product Certifications
    UL listed || CSA || cULus
    Insulation Temperature
    180 °C
    Nema Degree Of ProtectionNEMA 3R

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1407010
    Pvc Free
    Yes
    Eu Rohs Directive
    Compliant
    Reach Free Of Svhc
    Yes
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Complementary

    Height
    6.69 in
    Temperature Rise
    115 °C
    Width
    6.19 in
    Network Number Of Phases
    1 phase
    Box Number
    6A
    Enclosure Mountingwall mounted
    Enclosure Materialpainted sheet steel
    Depth4.69 in
    Rated Power In Va0.75 kVA

    Specifications

    Number Of Tap-Offs
    0
    Primary Voltage
    600 V 120/240 V
    Product Or Component TypeDry Sealed Transformer
