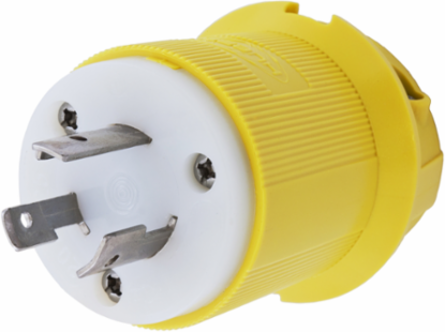

Hubbell Wiring Device-Kellems HBL23CM11 Locking Plug L5-20P, 20A 125V, 2-Pole, 3-Wire, Corrosion Resistant
Hubbell Wiring Device-Kellems HBL23CM11 Locking Plug L5-20P, 20A 125V, 2-Pole, 3-Wire, Corrosion Resistant
- MPN: HBL23CM11
- UPC: 783585038094
- PPN: HBL-HBL23CM11
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.38/ EA
Description
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Corrosion Resistant, Yellow.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Corrosion Resistant
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 2.26 in x 2.26 in x 2.75 in
- Horsepower - Maximum
- 1
- Length
- 2.26 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L5-20P
- Number of Wires
- 3-Wire
- Size
- 2.26 in x 2.26 in x 2.75 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Width
- 2.26 in
- General Literature Asset 1 Display Text
- Food Processing Guide
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, CM, 20A 125V, L5-20P, YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.360"-0.930" (9-24)
- Cord Diameter
- 0.360-0.930 in
- Material
- Nylon
- BOX SIZE
- 7.000x14.200x10.700 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585038094
- Case Weight
- 4.600 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height2.75 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
TypePlugs
Wire Size#16 AWG to #8 AWG
Weight0.30 lb.
Engineering Drawing 1 Display TextHBL23CM11 AutoCAD Drawing
General Literature Asset 2 Display TextHubbell Marine Full Line Catalog
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL5-20P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number205CRP;2311CY;23CM11;HBL205CRP
Cable Range0.360 - 0.930 in
Material - Mounting HardwareCord Mounted
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
