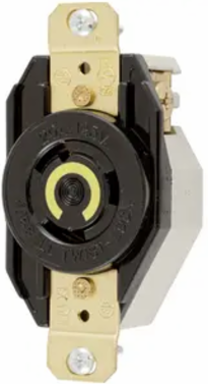

Locking Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Nylon
Hubbell Wiring Device-Kellems

Hubbell Wiring Device-Kellems HBL2310 Locking Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Nylon

  • MPN: HBL2310
  • UPC: 783585235509
  • PPN: HBL-HBL2310
  • UNSPSC: 39121406

CAD

$36.31

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Nylon face, Back and side wired, Black

Features

  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Dimensions
3.28 in x 1.70 in x 1.23 in
Horsepower - Maximum
1
Length
3.28 in
Standards - RoHS Compliance Status
CM
Application
Heavy Duty Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Special Features
Standard
Type
Single Flush Receptacle
Wire Size
#16 AWG to #8 AWG
Weight
0.25 lb.
Engineering Drawing 1 Display Text
HBL2310 AutoCAD Drawing
General Literature Asset 2 Display Text
Education Application Guide
Connectivity
Back and Side Wired
Nema Rating
L5-20R
Number Of Wires
3-Wire
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
2310A;2310ACN;2310AM4;HBL2310CN
Material - Mounting Hardware
Screw Mounting
Material
Nylon
BOX SIZE
3.700x10.000x4.500 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
783585235509
Case - Total Units
50 EA
Each - Pack Description
Each
Pallet Height
45.000 in
Pallet Weight
1170.450 lb.
Current / Amperage Rating20 A
Height1.23 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL5-20R
Number of Wires3-Wire
Size3.28 in x 1.70 in x 1.23 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width1.70 in
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextHealthcare Application Guide
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 20A 125V, L5-20R, BK
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight14.450 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes
