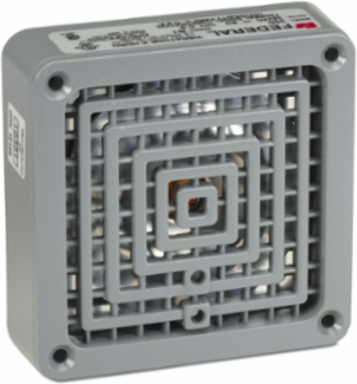

Federal Signal 350-240-30 Vibratone Horn, UL and cUL, 240VAC, Gray
- MPN: 350-240-30
- UPC: 782979205401
- PPN: FDS-350-240-30
- UNSPSC: 46171602
CAD
$249.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Model 350 Vibratone® Horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy-duty construction makes Model 350 ideal for industrial and institutional signaling applications. It’s popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas.Model 350 is enclosed in a zinc die-cast housing and sealed with gray powder-coated paint.
Features
- Available in 12VAC, 24VAC, 120VAC and 240VAC
- Coded or sustained tones
- Produces 100 dBa @ 10' (110 dBa @ 1m)
- Surface or flush mounting options
- Type 4X when installed with optional Weatherproof Back Box (Model WB) or Panel Mount Gasket Kit (Model K8435666A): Type 4X and Type 12 when installed with optional Surface Mount Trim Ring (Model TR). All 4X accessories are sold separately.
- CSA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 110
- Availability
- Ships in 5 business days
- Operating Temp.
- -65˚ to +150˚F (-54˚ to +66˚C)
- Audible Signals Voltage
- 240VAC
- Height
- 4.06 in, 10.3124 cm
Weight1.4 lbs
Certification ListingCSA, UL, cUL
dBa 10 Ft100
Operating Current Amps0.09
Operating Voltage240 Vac
Depth4.06 in, 10.3124 cm
Width4.06 in, 10.3124 cm
