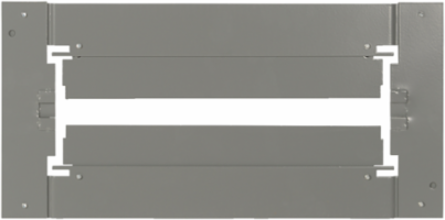

Square D ACF13WF Wall flange, I-Line Busway, 2000A, 600VAC, 3 phase, 4 wire, vertical [TAA]
![Wall flange, I-Line Busway, 2000A, 600VAC, 3 phase, 4 wire, vertical [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/5892fd4a9298058f4f190d9499a64a4f39e6194b-medium.png)
Square D ACF13WF Wall flange, I-Line Busway, 2000A, 600VAC, 3 phase, 4 wire, vertical [TAA]
- MPN: ACF13WF
- UPC: 785901812647
- PPN: SCH-ACF13WF
- UNSPSC: 39131701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$875.25/ EA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This wall flange is rated 2000A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to terminate the bus into switchgear, motor control centers, switchboards or any rigid bus-to-bus connection. This wall flange can be used with aluminum and copper busways. This unit is for vertical mounting. This wall flange meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Features
- Improved system protection against environmental contaminants.
- Clean and professional finish for wall penetrations.
- Supports structural integrity of the busway installation.
- Prevents dust and debris from entering the busway system.
- This product is TAA, and BAA via COTS compliant.
Specifications
Conformance Attributes
- Standards
- UL 857, CSA C22.2 No 27:1994, IEC 61439-6
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- busbar trunking 2000-2000 A aluminium, busbar trunking 2500-2500 A copper
- Local Publishable Date
- 2025-11-18
- Scope Perimeter
- Outside of Europe
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Medium Desc
- Wall flange, I-Line Busway, 2000A, 600VAC, 3 phase, 4 wire, vertical [TAA]
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Product Or Component Typewall flange
ReturnabilityYes
Ue Rated Operational Voltage2600 V AC/DC 50/60 Hz
Stocking FlagY
Pep CodeENVPEP1407015EN
Ue Rated Operational Voltage5600 V AC/DC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1407015EN
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- wall flange
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant | BAA Compliant via COTS
