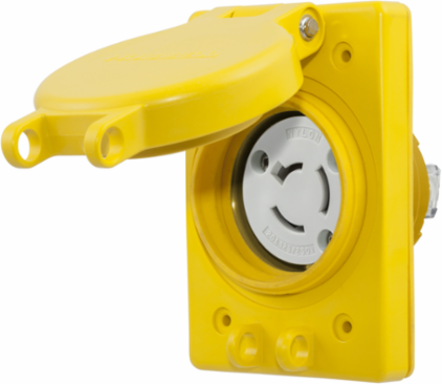

Hubbell Wiring Device-Kellems HBL67W08 Watertight Twist-Lock Receptacle, 20A, 125/250V, 3-Pole, Yellow, 4.56 Inch x 3.10 Inch x 3.46 Inch
- MPN: HBL67W08
- UPC: 783585456638
- PPN: HBL-HBL67W08
- UNSPSC: 39121406
CAD
$191.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 125/250VAC, 3 Pole, 3 Wire, Thermoplastic elastomer, NON-NEMA, Yellow
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- Temperature Rating
- -40°C to +60°C continuous
- Moisture Resistance Rating
- UL Listed Type 4, 4X, 12, 6, 6P
- Dimensions
- 4.56 in x 3.10 in x 3.46 in
- Width
- 3.10 in
- Type
- Receptacle
- Body Material
- PBT
- Contact Carrier Material
- White Nylon
- Contact Material
- Nickel plated brass
- Terminal Screws Material
- Nickel plated brass
- UV Resistance
- UV stabilized
- NEMA Rating
- Non-NEMA
- Country of Origin
- US
Voltage125/250 VAC
Number of Wires3-Wire
Temperature Rise30°C max per UL498 at rated current
Dielectric Voltage2500 V AC
Length4.56 in
Height3.46 in
Wire Size#18 AWG to #8 AWG
Seal MaterialThermoplastic elastomer
Terminal Retainer MaterialClear Polycarbonate
Core MaterialWhite Nylon
Hardware MaterialStainless Steel
ComplianceUL Listed, CSA Certified, IP69K In Use; Meets NEMA WD-1, WD-6 and ANSI Standards
RoHS ComplianceCM
ColorYellow
