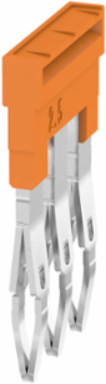

Weidmuller 1527570000 ZQV 2.5N/3
Weidmuller 1527570000 ZQV 2.5N/3
- MPN: 1527570000
- PPN: WDM-1527570000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.65/ EA
Description
ZQV 2.5N/3
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 13 mm
- Height
- 24.7 mm
- Depth
- 2.8 mm
- Net weight
- 1.752 g
Width (inches)0.512 inch
Height (inches)0.972 inch
Depth (inches)0.11 inch
Dimensions
- Pitch in mm (P)
- 5.1 mm
Additional Technical Data
- Explosion-tested version
- Yes
- Type of mounting
- Direct mounting
Type of fixingPlugged
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Rating Data
- Rated current
- 24 A
Downloads
Video
