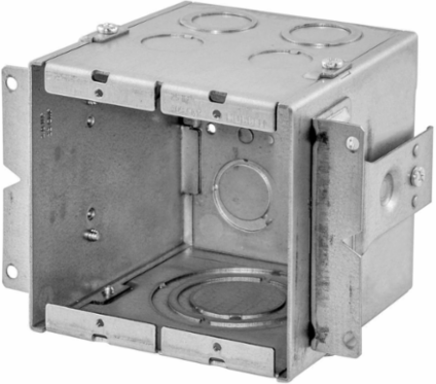

Raco 985 2-Gang Gangable Wallbox, 4 Inch Deep, 2 Inch Knockouts, Steel Material
- MPN: 985
- UPC: 050169009857
- PPN: HBL-985
- UNSPSC: 39121309
CAD
$34.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2-Gang Wallbox, Gangable, 4-inch Deep, 2-inch Knockouts
Features
- Knockouts from 1/2" up to 2
- 4" depth accepts any device
- Concentric 1/2" - 3/4" knockouts for pre-connectorized AV cables
- Eccentric 1/2" - 3/4" knockouts
- Raised ground provision in each gang
- Accepts low voltage partition
- NEMA spaced device mounting, accepts industry standard wallplates
- Adjustable stud mounting brackets built in to accommodate different stud and sheetrock thickness
- Adjustable far side support
- Suitable for masonry application
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 4 in
- Cubic Capacity
- 54 cu.in
- Knockouts
- 1/2 in;1/2 - 3/4 in Combination (TKO)
- Type
- Box;Large Capacity
- Weight
- 1.758 lb.
- Description - Invoice
- 2G WALLBOX, GANGABLE, 4INCH DEEP, 2IN KO
- Harmonization Code
- 7326908688
- Sub Class Code
- A36A330
- Wiring System
- Conduit
- Number of Gang(s)
- 2-Gang
- BOX SIZE
- 4.625x22.000x11.625 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00050169009857
- Pallet - GTIN - Package
- 70050169009856
- Pallet - Total Units
- 560 EA
- Pallet Length
- 43.375 in
- Pallet Width
- 43.375 in
Actual Depth4.165 in
Description - SlangGangable Wallbox
Height4.205 in
StandardcULus Listed
Width5.562 in
Class CodeA36
Freight Class Code06202000
Image Actual Or RepresentativeA
Drawn or WeldedWelded
MaterialSteel
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.548 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet - SCC-14 Next Lower Level Sub Pack50050169009852
Pallet Height37.875 in
Pallet Weight1083.688 lb.
NAICS Code3359326101
Certifications
- Certified Listed
- cULus Listed
