Mersen J301906 1250/1300 Volt High-Speed Semiconductor Fuse, 50-1800 A, Square Body, IEC 269-4 Compliant
Mersen J301906 1250/1300 Volt High-Speed Semiconductor Fuse, 50-1800 A, Square Body, IEC 269-4 Compliant
- MPN: J301906
- UPC: 782001238087
- PPN: FER-J301906
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$704.96/ EA
Description

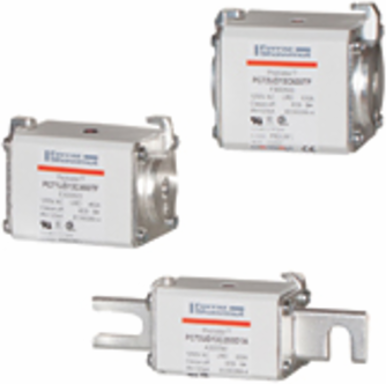

Mersen 1250/1300V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in four different body sizes, each size having seven worldwide acceptable mounting styles. The different mounting styles and body sizes long with a broad range of ampere ratings allow greatest flexibility in equipment design. Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR's, diodes, thyristors, GTO's and IGBT devices. They have pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for low I2t and high interrupting rating. All contact surfaces are silver-plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly onto the fuse even while in service.
Features
- Extremely Fast-Acting
- IEC 269-4 compliance for worldwide semiconductor applications
- Worldwide Acceptability
- Current-Limiting
- Very Low I²t
- Choice of mounting styles gives wide choice for equipment design
- Superior Cycling Ability
- Broad range of ampere ratings in a given body size for design flexibility
Specifications
Product Details
- Applications
- Protection of rectifiers, inverters, DC drives, UPS Systems, reduced voltage motor starters, and other equipment.
- AC Voltage Range
- 550 - 1300 VAC
- Speed / Characteristic
- High-Speed
- I.R. AC
- 100 kA
- Standards
- UL Recognized Component Sizes 70, 71, 72, 73 Tested to IEC 269.4 RoHS Compliant
- CSA Certification
- 1422-30 012636_0_000
- Lead Free
- Consult Technical Services
- Mounting
- Bolted
UL CertificationE76491 JFHR2.E76491E76491 JFHR2.E76491
Ampere Range50 to 1800 A
ROHS CompliantConsult Technical Services
Body StyleSquare
CE conformityConsult Technical Services
Body MaterialCeramic
Connection Terminal TypeBlade Flat-Type
