Mersen E301074 High-Speed 690/700 Volt Semiconductor Fuse, 40-5000 A, Ceramic Square Body
Mersen E301074 High-Speed 690/700 Volt Semiconductor Fuse, 40-5000 A, Ceramic Square Body
- MPN: E301074
- UPC: 782001241988
- PPN: FER-E301074
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1023.26/ EA
Description

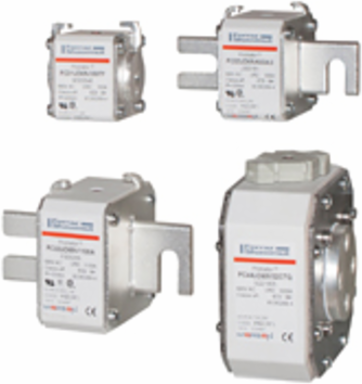

Mersen 690/700V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in four different body sizes, each size having seven worldwide acceptable mounting styles. The different mounting styles and body sizes long with a broad range of ampere ratings allow greatest flexibility in equipment design Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR's, diodes, thyristors, GTO's and IGBT devices. They have pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for low I2t and high interrupting rating. All contact surfaces are silver-plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly onto the fuse even while in service.
Features
- Current-Limiting
- Very Low I²t
- IEC 269-4 compliance for worldwide semiconductor applications
- Choice of mounting styles gives wide choice for equipment design
- Broad range of ampere ratings in a given body size for design flexibility
- Worldwide Acceptability
- Extremely Fast-Acting
- Superior Cycling Ability
Specifications
Product Details
- Standards
- UL Recognized Component Sizes 30, 31, 32, 33 Tested to IEC 269.4 RoHS Compliant
- Mounting
- Bolted
- CSA Certification
- 1422-30 012636_0_000
- Body Style
- Square
- AC Voltage Range
- 400 - 700 VAC
- I.R. AC
- 200 kA
- UL Certification
- E76491 JFHR2.E76491
- Speed / Characteristic
- High-Speed
Connection Terminal TypeBlade Flat-Type
ApplicationsProtection of rectifiers, inverters, DC drives, UPS Systems, reduced voltage motor starters, and other equipment.
Body MaterialCeramic
Ampere Range40 to 5000 A
ROHS CompliantConsult Technical Services
CE conformityConsult Technical Services
Lead FreeConsult Technical Services
