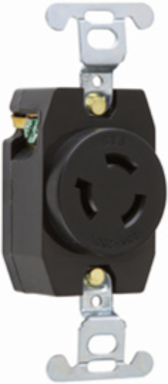

Pass & Seymour 4560 15A NEMA L615 Locking Receptacle, 2.375 Inch Height, UL Listed
- MPN: 4560
- UPC: 785007456004
- PPN: P-S-4560
CAD
$58.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A NEMA L615 Locking Receptacle, 2.375 Inch Height, UL Listed
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA Configuration Code
- L6-15R
- Depth
- 0.922 in
- Number of Receptacles
- 1
- Number of Poles
- Double Pole
- Wire Connection Type
- Screw Terminals
- Material
- Brass, Nylon
- Contacts Material
- High-grade Brass
- Compliance
- UL 498, FEDSPEC, UL Listed, cULus Listed, CSA Listed
- Dielectric Withstand Voltage
- 2000 V minimum
- Temperature Rise
- 30°C max after 50 cycles at 150% rated current
- Country of Origin
- Mexico
- Outlet Type
- Locking
- Product Line
- Pass & Seymour
Voltage250 V
Height2.375 in
Number of Wires3
PhaseSingle
Wire Size14 - 10 AWG
Connection LocationBack and Side
Mounting Strap MaterialBrass
Flammability RatingUL94 V2
Operating Temperature-40°C to +75°C
Maximum Working Voltage600 VAC
ColorBlack
Indoor/OutdoorIndoor
Application SectorIndustrial
