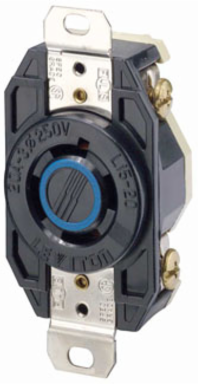

Leviton 2420 20 Amp 250 Volt Flush Mount Locking Receptacle, NEMA L15-20R, 3-Phase
- MPN: 2420
- UPC: 078477809341
- PPN: LEV-2420
CAD
$36.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

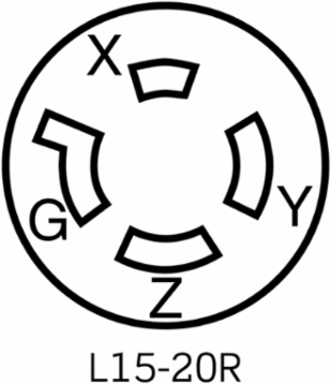

20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Phase
- 3-Phase
- Wire
- 4
- Dielectric Voltage
- 2000 V per UL 498
- Operating Temperature
- -40°C to 60°C
- Cord Range
- 0.595 to 0.895 in
- Terminal Accom.
- 14-8 AWG
- Color
- Black
- CSA
- C22.2 No. 42
- ANSI
- C-73
- UL Fed Spec
- W-C-596
- Country of Origin
- Mexico
- Device Type
- Locking Receptacle
- Grounding Screw
- Chromated Brass
- Face Material
- Ultramid
- Line Contacts
- Brass
- Base Material
- Valox
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Environment
- Corrosive
- Warranty
- Limited Lifetime Warranty
Voltage250 VAC
Pole3
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30°C after 250 cycles OL at 200% rated current
Screw Terminal Torque14-18 in-lbs
MaterialValox, Nylon, Ultramid, Brass, Nickel-Plated Brass, Chromated Brass
FlammabilityV-0 per UL 94
NOM057
UL498
NEMAL15-20R, WD-1 & WD-6
BrandV-0-Max
TerminationBack & Side
Strap MaterialNickel-Plated Brass
Terminal ClampsNickel-Plated Brass
Terminal ScrewsChromated Brass
Cover MaterialValox 357
Terminal IDMarked on Device
Body MaterialNylon
