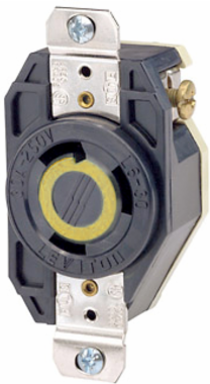

Leviton 2610 30 Amp 125 Volt Flush Mount Locking Receptacle, NEMA L5-30R, Nylon Body
- MPN: 2610
- UPC: 078477809471
- PPN: LEV-2610
CAD
$28.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

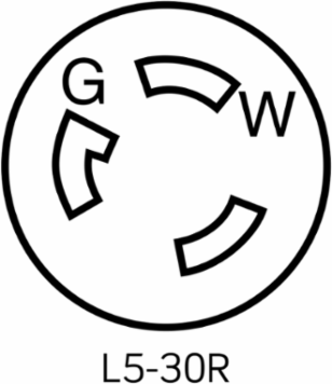

30 Amp, 125 Volt, NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for generators and camper trailers
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Pole
- 2
- NEMA
- WD-1 & WD-6
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Screw Terminal Torque
- 14-18 in-lbs
- Base Material
- Valox
- Face Material
- Ultramid
- Strap Material
- Nickel-Plated Brass
- Line Contacts
- Brass
- Ground Contacts
- Brass
- Termination
- Back & Side
- Device Type
- Locking Receptacle
- UL
- 498
- ANSI
- C-73
- UL Fed Spec
- W-C-596
- Environment
- Corrosive
- Color
- Black
- Country of Origin
- Please Contact Customer Service
Voltage125 VAC
Wire3
Operating Temperature-40°C to 60°C
Cord Range0.595 to 1.150 in
Body MaterialNylon
Cover MaterialValox 357
Grounding ScrewChromated Brass
Terminal ScrewsChromated Brass
Terminal ClampsNickel-Plated Brass
GroundingGrounding
Terminal Accom.14-8 AWG
FlammabilityRated V-0 per UL 94
CSAC22.2 No. 42
NOM057
RoHS CompliantTrue
BrandV-0-Max
Product IDRatings and NEMA I.D. permanently marked on device
