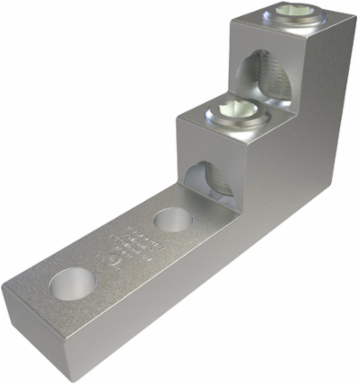

ILSCO PBMW-2-750-12 Aluminum Panelboard Lug, 750-2 kcmil, 2 Ports, 1/2 Inch Bolt, Tin Plated

Aluminum Panelboard Lug, 750-2 kcmil, 2 Ports, 1/2 Inch Bolt, Tin Plated
  • MPN: PBMW-2-750-12
  • UPC: 783669184365
  • PPN: ILC-PBMW-2-750-12

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$234.20/ EA

Description

Aluminum Panelboard Lug, 750-2 kcmil, 2 Ports, 1/2 Inch Bolt, Tin Plated

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Dimension G (IN)
0.625
Drive Size Main
1/2
Height BX (IN)
2
Length (mm)
144.4498
Mounting Hole Diameter (IN)
0.562
Mounting Hole Spacing (IN)
1.75
Tang Length (IN)
3.125
Tang Thickness (IN)
0.75
Tang Width (IN)
1.31
Weight BX (LB)
1.1202
Width (mm)
33.274
Dimension G (mm)15.875
Drive Type MainInternal Hex
Height (mm)76.2
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (mm)44.45
Tang Length (mm)79.375
Tang Thickness (mm)19.05
Tang Width (mm)33.274
Width BX (IN)6.188

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL File Number
E6207
UL / CULUS SpecificationUL/cUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Mounting Hole Type
Thru
Number of Mounting Holes
2
Number of Ports / Wireways
2
Contains DE-OX®No
Number of Conductors4, 2
Number of Poles1
Wire OrientationPerpendicular

Material and Finish

Conductor Material
Aluminum, Copper
Material
Aluminum
Wire Binding Hardware Material
Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
750 kcmil - 2 Str
Wire Combinations
(2) 250 kcmil - 1/0 Str
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 2 Str

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedYes
UPC Code78366918436

Specifications

Height
3 in | 76.2 mm
Weight
0.973 lbs
Length5.687 in | 144.4498 mm
Width1.31 in | 33.274 mm

Bolt and Screw Sizes

Mounting Bolt/Stud Size
1/2
Wire Binding Screw Size
15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500

Color

Color
Silver

Environment and Temperature

Temperature Rating
90°C
