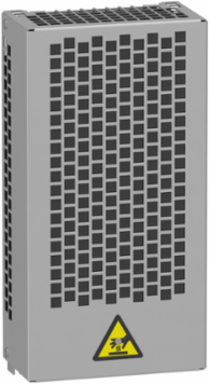

Schneider Electric VW3A7732 braking resistor, Altivar, 28Ohms, 0.3kW, IP20
Schneider Electric VW3A7732 braking resistor, Altivar, 28Ohms, 0.3kW, IP20
- MPN: VW3A7732
- PPN: SCH-VW3A7732
- UNSPSC: 26112105
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$401.52/ EA
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 3kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Features
- Enable maximum transient braking torque
- Designed for machines with high inertia, driving loads, and machines with fast cycles
- Thermal protection via temperature-controlled switch or thermal overload relay
- Terminal electrical connection
- IP20 degree of protection
- Wide range of operating temperature from 0°C to 50°C
Specifications
Important Information Attributes
- Duty Cycle
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Local Publishable Date
- 2026-01-12
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Electrical Connection
- terminal <= 10 mm² / AWG 8 drive
- Package Weight Lbs
- 3.094 kg
- Product Or Component Type
- braking resistor
- Range Of Product
- Altivar
- Sustainable Packaging
- No
- Country Of Origin 6
- US
- Product Kit Identifier
- N
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Average Power Available0.3 kW 50 °C
Ohmic Value28 Ohm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via drive
ReturnabilityYes
Medium Descbraking resistor, Altivar, 28Ohms, 0.3kW, IP20
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle, variable speed drive ATV320 7.5 kW 380...480 V, variable speed drive ATV320 3 kW 200...240 V, variable speed drive ATV320 11 kW 380...480 V, variable speed drive ATV320 11 kW 525...600 V, variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle, variable speed drive ATV340 7.5 kW 380...480 V light cycle, variable speed drive ATV320 15 kW 525...600 V, variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle, variable speed drive ATV320 7.5 kW 525...600 V, variable speed drive ATV930 15 kW 500...690 V light cycle, variable speed drive ATV930 25 hp 600 V light cycle, variable speed drive ATV930 20 hp 600 V light cycle, variable speed drive ATV930 18.5 kW 500...690 V light cycle, variable speed drive ATV340 11 kW 380...480 V light cycle, variable speed drive ATV310 11 kW, variable speed drive ATV320 2.2 kW 200...240 V
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- braking resistor
Range Of ProductAltivar
Specifications
- Country of Origin
- France, Sweden
Depth100 mm
