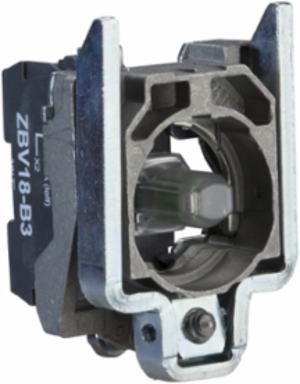

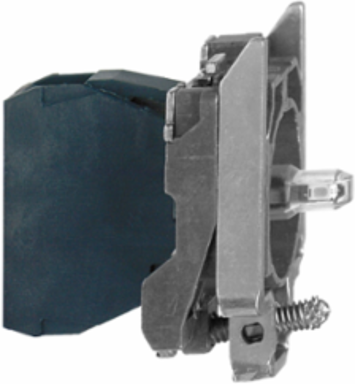

Schneider Electric ZB4BVG63 Complete body/light block assembly, Harmony XB4, blue light, with body/fixing collar, BA9s LED bulb, 110…120V AC
Schneider Electric ZB4BVG63 Complete body/light block assembly, Harmony XB4, blue light, with body/fixing collar, BA9s LED bulb, 110…120V AC
- MPN: ZB4BVG63
- PPN: SCH-ZB4BVG63
- UNSPSC: 39122216
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$48.43/ EA
Description
Complete body/light block assembly, Harmony XB4, blue light, with body/fixing collar, BA9s LED bulb, 110…120V AC
Specifications
Physical Attributes
- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Light Source Colorblue
Conformance Attributes
- Product Certifications
- CSA, UL Listed
StandardsIEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-5, JIS C8201-1
Important Information Attributes
- Customizable
- 0, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Us Rated Supply Voltage2
- 110...120 V, 110...120 V AC 50/60 Hz
- Connections Terminals3
- Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Return Indicator
- N
- Compatibility Code
- ZB4
- Device Short Name
- ZB4
- Electromagnetic Emission
- class B IEC 55011
- Important Message
- All colored LED are replaced with a single Universal LED block for use with new illuminated heads (more information at se.com/harmonyxb4 or se.com/harmonyxb5)
- Light Source Color
- blue
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Returnability
- No
- Signalling Type
- steady
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Ui Rated Insulation Voltage2
- 250 V 3)IEC 60947-1
- Medium Desc
- Complete body/light block assembly, Harmony XB4, blue light, with body/fixing collar, BA9s LED bulb, 110…120V AC
- Product Kit Identifier
- N
- Ui Rated Insulation Voltage5
- 250 V 3)IEC 60947-1
- Us Rated Supply Voltage5
- 110...120 V AC 50/60 Hz
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
Terminals Description ISO N 1(X1-X2)PL, (X1-X2)PL
Connections TerminalsFaston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
Local Data StatusPublishable
Legacy WEEE ScopeIn
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Bulb Baseintegral LED
Current Consumption14 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Light Sourceprotected LED
Package Weight Lbs55.0 g
Product Or Component Typecomplete body/light block assembly
Range Of ProductHarmony XB4
Resistance To Fast Transients2 kV IEC 61000-4-4
Service Life100000 h at rated voltage and 25 °C
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Uimp Rated Impulse Withstand Voltage24 kV IEC 60947-1
Stocking FlagY
Global Commercial StatusEnd of commerc. - Block
Uimp Rated Impulse Withstand Voltage54 kV IEC 60947-1
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS Regulation
- X
- Ambient Air Temperature For Operation
- -40-70 °C
- Packaging Made With Recycled Cardboard
- Yes
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- complete body/light block assembly
Range Of ProductHarmony XB4
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
