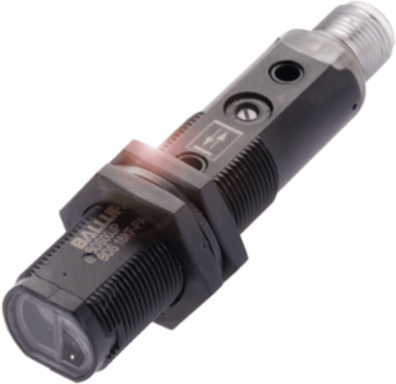

Balluff BOS 18KF-NA-1LOC-S4-C Diffuse sensor BOS 18KF-NA-1LOC-S4-C
- MPN: BOS 18KF-NA-1LOC-S4-C
- PPN: BAL-BOS00HU
CAD
$215.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Energetic diffuse sensors are ideal for the detection of differences in contrast. They detect objects depending on their surface, color and material.They are inexpensive, easy to mount and align.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Interface
- NPN Normally open (NO), NPN Normally closed (NC)
- Light Type
- Laser Red light
- Rated Operating Current
- 100 mA
- Turn-off Delay
- 0.33 ms
- Voltage Drop Max
- 2 V
- Laser Class
- 1
- Pulse Frequency
- 25 kHz
- Dimension
- Ø 18 x 81.5 mm
- Maximum Tightening Torque
- 1.5 Nm
- Housing Material
- PBT
- Ambient Temperature
- -10 to 50 °C
- IP Rating
- IP67
- Approval/Conformity
- CE, cULus, EAC, WEEE
- Principle of Operation
- Photoelectric sensor
- Series
- 18KF
Range0-350 mm Adjustable
Beam CharacteristicDivergent
Rated Insulation Voltage75 V DC
Switching Frequency1000 Hz
Turn-on Delay0.33 ms
Average Power Max390 µW
Pulse Duration Max6 µs
Wavelength650 nm
Mounting ThreadM18 x 1
Material Sensing SurfacePMMA
ConnectionConnector, M12x1-Male, 4-pin
Ambient Light Max5000 Lux
MTTF (40 °C)639 a
Principle of Optical OperationDiffuse sensor (energetic)
TrademarkGlobal
