Schneider Electric RSB1A160B7S Harmony, Interface plug-in relay with socket, 16 A, 1 CO, 24 V AC
Schneider Electric RSB1A160B7S Harmony, Interface plug-in relay with socket, 16 A, 1 CO, 24 V AC
- MPN: RSB1A160B7S
- PPN: SCH-RSB1A160B7S
- UNSPSC: 39122326
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$23.35/ EA
Description

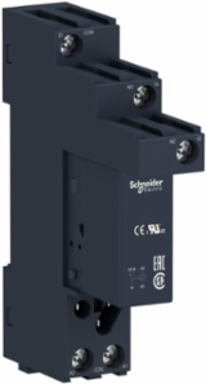

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 1 changeover contact single pole double throw with a rating of 16A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Conformance Attributes
- Product Certifications
- UL, GOST, CSA
StandardsUL 508, IEC 61810-1, CSA C22.2 No 14
Complementary Attributes
- Maximum Switching Voltage
- 300 V DC, 400 V AC
- Line Rated Current
- 16 A
- Minimum Switching Capacity
- 300 mW 5 mA
Maximum Switching Capacity4000 VA AC, 448 W DC
Minimum Switching Current5 mA
Important Information Attributes
- Dielectric Strength
- 1000 V AC between contacts, 2500 V AC between poles, 5000 V AC between coil and contact
- Electrical Durability
- 100000 cycles, 16 A at 250 V, AC-1 NO, 100000 cycles, 8 A at 250 V, AC-1 NC
- Operating Time
- 10 ms between coil de-energisation and making of the Off-delay contact, 12 ms between coil energisation and making of the On-delay contact
- Vibration Resistance
- +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Uc Control Circuit Voltage2
- 24 V AC, 24 V
- Operating Rate
- <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load
- Ue Rated Operational Voltage5
- 19.2...26.4 V AC 50 Hz, 20.4...26.4 V AC 60 Hz
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Average Coil Consumption
- 0.75 VA AC 60 Hz
- Contact Operation
- standard
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RSB
- Mechanical Durability
- 30000000 cycles
- Package Weight Lbs
- 61.0 g
- Product Or Component Type
- plug-in relay
- Returnability
- No
- Shape Of Pin
- flat
- Sustainable Packaging
- No
- Ui Rated Insulation Voltage2
- 400 V IEC 60947
- Connections Terminals
- screw connectors
- Stocking Flag
- Y
- Pep Code
- ENVPEP1405015EN
- Protection Category
- RT I
- Switching Voltage
- 5 V
- Ithe Conventional Enclosed Thermal Current5
- 16 A -40-40 °C
- Ui Rated Insulation Voltage5
- 400 V IEC 60947
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC
Load Current16 A 250 V AC, 16 A 28 V DC
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Ie Rated Operational Current216 A AC-1/DC-1) NO IEC, 8 A AC-1/DC-1) NC IEC
Ue Rated Operational Voltage219.2...26.4 V AC 50 Hz, 20.4...26.4 V AC 60 Hz
Ie Rated Operational Current516 A AC-1/DC-1) NO IEC, 8 A AC-1/DC-1) NC IEC
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Return IndicatorN
Compatibility CodeRSB
Contacts Materialsilver alloy (Ag/Ni)
Control Typewithout push-button
MarkingCE
Operating Positionany position
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Series Nameinterface relay
Status Ledwithout
Ithe Conventional Enclosed Thermal Current216 A -40-40 °C
Uimp Rated Impulse Withstand Voltage23.6 kV IEC 61000-4-5
Medium DescHarmony, Interface plug-in relay with socket, 16 A, 1 CO, 24 V AC
Product Kit IdentifierN
Average Resistance400 Ohm AC 20 °C +/- 15 %
Safety Reliability DataB10d = 100000
Global Commercial StatusEnd of commerc. - Block
Uc Control Circuit Voltage524 V AC
Uimp Rated Impulse Withstand Voltage53.6 kV IEC 61000-4-5
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C AC), -40-70 °C AC), -40-85 °C DC), -40-85 °C DC), -40-70 °C AC), -40-70 °C AC), -40-85 °C DC)
- ROHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Storage
- -40-85 °C
- IP Degree Of Protection
- IP40 conforming to IEC 60529
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
China ROHS RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1405015EN
Pep CodeENVPEP1405015EN
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
