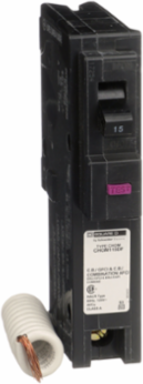

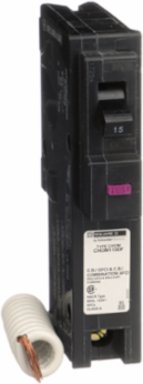

Schneider Electric CHOM115DF Homeline Mini Circuit Breaker, 15A, 1 Pole, 120V AC, 10kA AIR, Plug-On
- MPN: CHOM115DF
- UPC: 785901741398
- PPN: SCH-CHOM115DF
CAD
$184.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 12 VAC. HOM breakers provide 1 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- This advanced 15 A module integrates Class A 5mA Ground Fault Circuit Interrupter (GFCI) and Combination Arc Fault Circuit Interrupter (AFCI) safety technologies into a single compact space. For residential electrical contractors and savvy homeowners, this satisfies Canadian Electrical Code (CEC) compliance rules for modern bedrooms, en-suite bathrooms, and outdoor receptacles while permanently mitigating deadly electrical fire risks and shock hazards.
- Carrying a certified 10 kA Air Interrupting Rating (AIR) alongside a dedicated HACR (Heating, Air Conditioning, and Refrigeration) duty classification, this single-pole unit safely handles high-current, momentary inductive inrush rushes without nuisance tripping. The robust internal contacts allow your refrigerator compressors, bedroom heaters, or power tools to spin up seamlessly while remaining vigilant against true short-circuits.
- The heavy-duty screw clamp terminal block is fully certified to accept a broad wire range from 14 AWG down to 8 AWG in either copper or aluminum conductors. It can also securely capture two copper wires simultaneously between 14 AWG and 10 AWG, providing exceptional wiring flexibility for multi-outlet branch circuits without needing pigtailed splices inside tight enclosure gutters.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V AC
- Short-Circuit Current
- 10 kA
- Circuit Breaker Type
- Arc fault, Ground fault Class A 5 mA
- Mounting Mode
- Plug-on
- Wire Range
- 14 AWG to 8 AWG copper or aluminum
- Width
- 1 in
- Connections - Terminals
- Pigtail neutral
- Halogen Content Performance
- Halogen free
- RoHS Exemption Information
- Yes
- Reach Regulation
- Contains SVHC above threshold
- China RoHS Regulation
- Out of China RoHS scope
- Range of Product
- Homeline
Amperage15 A
Poles1P
Ambient Air Temperature for Operation40 °C (104 °F)
Electrical ConnectionScrew clamp terminals, Pigtail connector
Height3.13 in
Depth2.98 in
Product CertificationCSA
Mercury FreeYes
EU RoHS DirectiveCompliant with Exemptions
Environmental DisclosureENVPEP2212006
Product TypeMiniature circuit-breaker
Country of OriginMexico
