Thermoweld

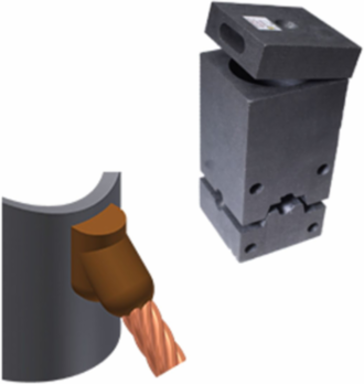

Thermoweld 600424860000 Exothermic Mold for 1/0 Stranded Run to 4 Inch Vertical Pipe, Graphite

Exothermic Mold for 1/0 Stranded Run to 4 Inch Vertical Pipe, Graphite
  • MPN: 600424860000
  • UPC: 781810617199
  • PPN: HBL-600424860000

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$346.58/ EA

Description

M-2486: CS-3 Exothermic mold 1/0 Stranded Run to 1 1/4” to 4” Vertical Pipe, using #90 Weld Metal Cartridge

Features

  • Made from high quality graphite
  • Molds light from the top at any angle, reducing splatter, and prolonging mold life
  • EZ Lite lid reduces emissions by 50% or more and points exhaust away from the user

Specifications

Specifications

Country of Origin
United States
Height
4 in
Product Type
thermOweld®
Type
Molds
Freight Class Code
10470000
Image Actual Or Representative
A
Material
Graphite
BOX SIZE
8.563x3.938x3.938 (in)
Carton - Number of Sub Packs
1
Carton - SCC-14 Next Lower Level Sub Pack
00781810617199
Pallet - GTIN - Package
70781810617198
Pallet Length
48.000 in
Pallet Width
40.000 in
Dimensions8 in x 4 in x 4 in
Length8 in
Width4 in
Class CodeB44
Harmonization Code6815190000
Sub Class CodeB44T001
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Height48.563 in
Pallet Weight2445.000 lb.
