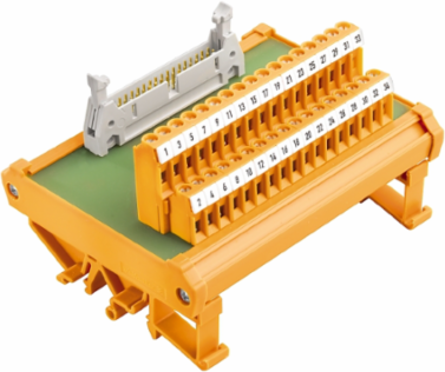

Weidmuller 0224961001 RS F10 LP2N 5/10

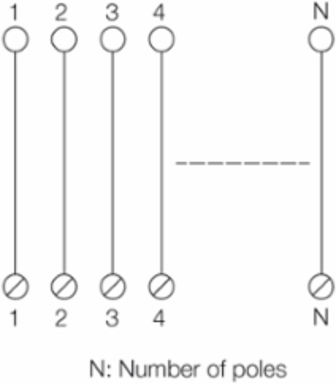

Weidmuller 0224961001 RS F10 LP2N 5/10
- MPN: 0224961001
- PPN: WDM-0224961001
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$77.21/ EA
Description
Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 10-pole, Screw connection
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 50 mm
- Width
- 87 mm
- Height
- 70 mm
- Net weight
- 101 g
Length (inches)1.969 inch
Width (inches)3.425 inch
Height (inches)2.756 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Pulse voltage test (1,2/50μs)
- 0.8 kV
Rated insulation voltage100 V
Pollution severity level2
Connection Data
- Connection on control side
- Plug-in connector in acc. with IEC60603-13 / DIN41651
- Connection (field side)
- LP2N 5.08mm
Number of poles (control side)10-pole
EarthingNo
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- 0...55 °C
Operating temperature, min.0 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
Rating Data
- Rated voltage
- 60 V AC / 75 V DC
Rated current per connection1 A
