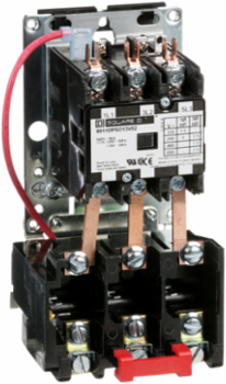

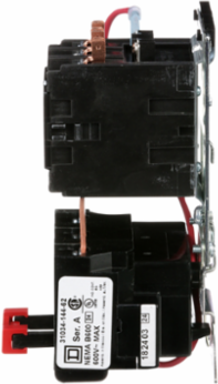

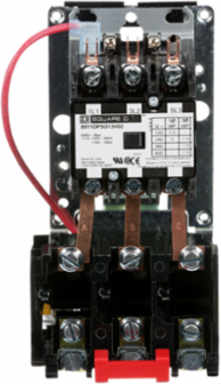

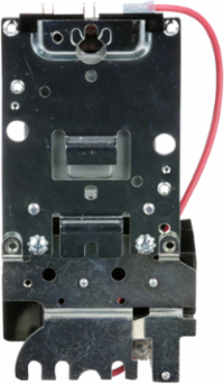

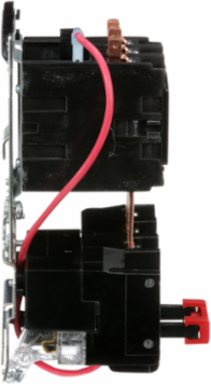

Schneider Electric 8911DPSO13V02 NEMA Definite Purpose Starter 20A 7.5HP 600VAC 3 Phase 3 Pole
Schneider Electric 8911DPSO13V02 NEMA Definite Purpose Starter 20A 7.5HP 600VAC 3 Phase 3 Pole
- MPN: 8911DPSO13V02
- UPC: 785901116752
- PPN: SCH-8911DPSO13V02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$280.55/ EA
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Specifications
Complementary
- Thermal Overload Type
- melting alloy
- Range Of Product
- DPS
- Locked Rotor Rated Current
- 120 A 230 V AC || 100 A 460 V AC || 80 A 575 V AC
Nema Degree Of Protectionnot rated (open device)
Number Of Thermal Units Required3
Poles Description3P
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Specifications
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- [In] Rated Current
- 20 A
- Network Number Of Phases
- 3 phases
Motor Power Hp3-3 hp 230 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 3 phases || 1.5-1.5 hp 115 V AC, 1 phase || 7.5-7.5 hp 460 V AC, 3 phases || 7.5-7.5 hp 575 V AC, 3 phases
Product Or Component TypeDefinite Purpose Starter
[Ue] Rated Operational Voltage600 V AC
Contractual warranty
- Warranty
- 18 months
