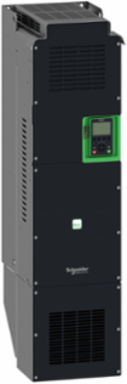

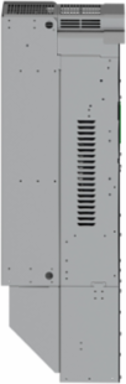

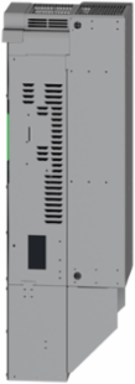

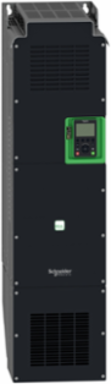

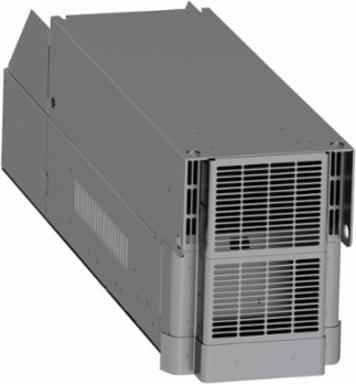

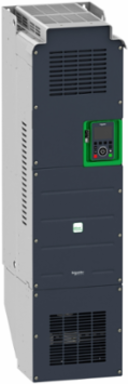

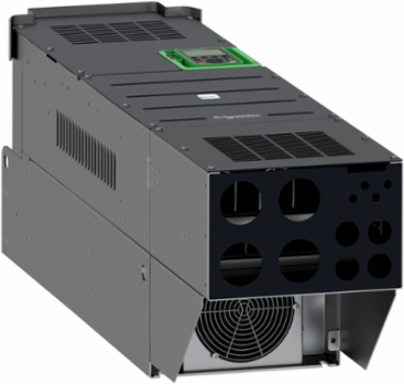

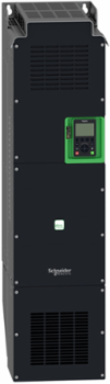

Schneider Electric ATV630D55M3 Altivar Process Variable Speed Drive 55kW 75hp 200-240V IP00
Schneider Electric ATV630D55M3 Altivar Process Variable Speed Drive 55kW 75hp 200-240V IP00
- MPN: ATV630D55M3
- PPN: SCH-ATV630D55M3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 55kW / 75hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 45kW / 60hp for applications requiring significant overload (up to 150%). It weighs 84kg and its dimensions are, 320mm wide, 852mm high, 390mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Specifications
Complementary
- Discrete Input Logic
- positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
- Discrete Output Type
- relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
- Network Number Of Phases
- 3 phases
- Type Of Polarization
- no impedance
- Relay Output Type
- configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
- Analogue Input Number
- 3
- Discrete Output Number
- 0
- Discrete Input Number
- 8
- Linearity Error
- AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

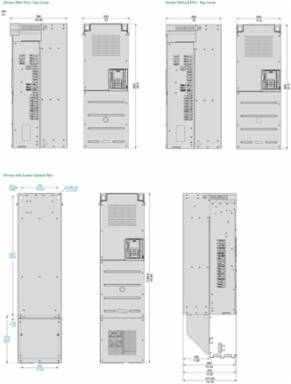

- Width
- 320 mm
- Depth
- 390 mm
- Discrete And Process Manufacturing
- building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compressor || food and beverage processing pump || food and beverage processing fan || food and beverage processing atomization || oil and gas electro submersible pump (ESP) || oil and gas water injection pump || oil and gas jet fuel pump || oil and gas compressor for refinery || water and waste water centrifuge pump || water and waste water positive displacement pump || water and waste water electro submersible pump (ESP) || water and waste water screw pump || water and waste water lobe compressor || water and waste water screw compressor || water and waste water compressor centrifugal || water and waste water fan || water and waste water conveyor || water and waste water mixer
- Electrical Connection
- control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 2 x 70...3 x 120 mm² 2 x AWG 2/0...2 x 300 kcmil || motor screw terminal 2 x 70...3 x 120 mm² 2 x AWG 2/0...2 x 300 kcmil
- Height
- 852 mm
- Transmission Frame
- RTU
- Data Format
- 8 bits, configurable odd, even or no parity
- Connector Type
- RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
- Permissible Temporary Current Boost
- 1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
- Analogue Output Number
- 2
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
- Enclosure Mounting
- wall mounted
- Output Voltage
- <= power supply voltage
- Braking To Standstill
- by DC injection
- Protection Type
- thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Maximum Switching Currentrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Power Range55-100 kW 200-240 V 3 phases
Net Weight84 kg
Frequency Resolutiondisplay unit 0.1 Hz || analog input 0.012/50 Hz
Maximum Transient Current232.1 A 60 s normal duty) || 264 A 60 s heavy duty)
Motor Slip Compensationnot available in permanent magnet motor law || automatic whatever the load || adjustable || can be suppressed
Method Of Accessslave Modbus TCP
Local Signallinglocal diagnostic 3 LEDs || embedded communication status 3 LEDs dual colour) || communication module status 4 LEDs dual colour) || presence of voltage 1 LED red)
Number Of Addresses1-247 Modbus serial
Transmission Rate10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Maximum Output Frequency500 kHz
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s
Relay Output Number3
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Input CompatibilityDI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
Mounting Modewall mount
Physical InterfaceEthernet || 2-wire RS 485
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolationbetween power and control terminals
Quantity Per Set1
Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Specifications
- Prospective Line Isc
- 50 kA
- Line Current
- 189 A 200 V normal duty) || 161 A 240 V normal duty) || 156 A 200 V heavy duty) || 134 A 240 V heavy duty)
- Asynchronous Motor Control Profile
- variable torque standard || optimized torque mode || constant torque standard
- Product Or Component Type
- variable speed drive
- Switching Frequency
- 2.5...8 kHz with derating factor || 2...8 kHz adjustable
- Product Specific Application
- process and utilities
- Motor Power Hp
- 75 hp normal duty || 60 hp heavy duty
- Option Card
- slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink
- Speed Drive Output Frequency
- 0.1-500 Hz
- Motor Power Kw
- 55 kW normal duty) || 45 kW heavy duty)
- [Us] Rated Supply Voltage
- 200...240 V - 15...10 %
- Type Of Cooling
- forced convection
- Nominal Switching Frequency
- 2.5 kHz
- Synchronous Motor Control Profile
- permanent magnet motor || synchronous reluctance motor
Product Destinationasynchronous motors || synchronous motors
Emc Filterwithout EMC filter
Variantstandard version
Apparent Power61.1 kVA 240 V normal duty) || 50 kVA 240 V heavy duty)
Communication Port ProtocolModbus TCP || Ethernet || Modbus serial
Safety FunctionSTO (safe torque off) SIL 3
Supply Frequency50...60 Hz - 5...5 %
Range Of ProductAltivar Process ATV600
Ip Degree Of ProtectionIP00IEC 61800-5-1 || IP00IEC 60529 || IP21 with kit VW3A9704)IEC 61800-5-1 || IP21 with kit VW3A9704)IEC 60529
[Us] Rated Supply Voltage200...240 V
Discrete Input Logic16 preset speeds
Continuous Output Current211 A 2.5 kHz normal duty || 176 A 2.5 kHz heavy duty
Device Short NameATV630
Environment
- Product Certifications
- UL || ATEX INERIS || TÜV || DNV-GL || CSA || ATEX zone 2/22
- Insulation Resistance
- > 1 MOhm 500 V DC for 1 minute to earth
- Vibration Resistance
- 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
- Regulation Loop
- adjustable PID regulator
- Overvoltage Category
- III
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
- Volume Of Cooling Air
- 600 m3/h
- Pollution Degree
- 2 IEC 61800-5-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Operating Position
- vertical +/- 10 degree
StandardsUL 508C || IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Shock Resistance15 gn 11 ms IEC 60068-2-27
Noise Level69.9 dB 86/188/EEC
Operating Altitude<= 1000 m without derating || 1000...4800 m with current derating 1 % per 100 m
Pollution Degree2
Ambient Air Temperature For Operation-15-50 °C without derating) || 50-60 °C with derating factor)
MarkingCE
Noise Level69.9 dB
Relative Humidity5-95 % without condensation IEC 60068-2-3
Maximum Thdi<48 % full load IEC 61000-3-12
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1501011EN
- Circularity Profile
- ENVEOLI1501011EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
