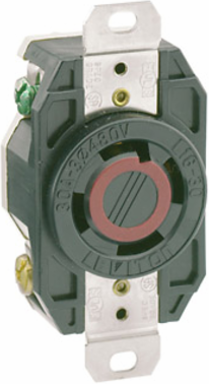

Leviton 2730 30 Amp Flush Mount Locking Receptacle, 480 Volt, NEMA L16-30R, 3-Phase
- MPN: 2730
- UPC: 078477809655
- PPN: LEV-2730
CAD
$98.70
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

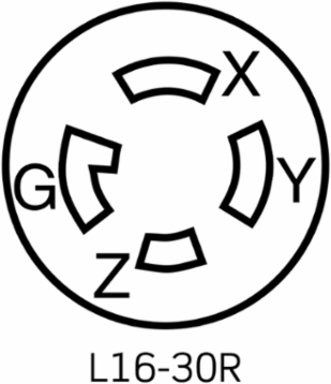

30 Amp, 480 Volt 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3-Phase
- Wire
- 4
- Screw Terminal Torque
- 14-18 in-lbs
- Cord Range
- 0.595 to 1.150 in
- Grounding
- Grounding
- Face Material
- Ultramid
- Terminal Screws
- Chromated Brass
- Cover Material
- Valox 357
- Ground Contacts
- Brass
- Line Contacts
- Brass
- UL
- 498
- RoHS Compliant
- True
- CSA
- C22.2 No. 42
- NEMA
- WD-1 & WD-6
- Device Type
- Locking Receptacle
- Environment
- Corrosive
Voltage480 VAC
Pole3
TerminationBack & Side
Terminal Accom.14-8 AWG
Dielectric VoltageWithstands 2000V per UL498
MaterialValox, Nylon, Brass, Nickel-Plated Brass, Ultramid
Base MaterialValox
Terminal ClampsNickel-Plated Brass
Strap MaterialNickel-Plated Brass
Grounding ScrewChromated Brass
FlammabilityRated V-0 per UL 94
UL Fed SpecW-C-596
ANSIC-73
NOM057
Operating Temperature-40°C to 60°C
Country of OriginMexico
BrandV-0-Max
