Balluff BOS Q08M-PS-PR20-02 Retroreflective sensors BOS Q08M-PS-PR20-02

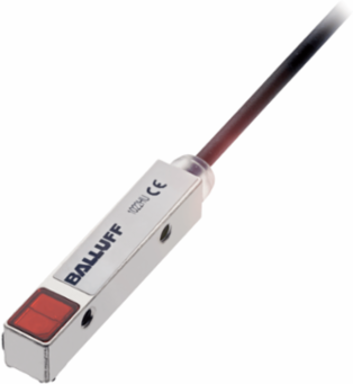

Retroreflective sensors BOS Q08M-PS-PR20-02
  • MPN: BOS Q08M-PS-PR20-02
  • PPN: BAL-BOS01TE

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$290.33/ EA

Description

Our retroreflective sensor is especially easy to align thanks to generous mounting tolerances. You only need to mount one electrical device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of their surface, color and material. A pole filter makes them suitable for detecting shiny objects as well.

Specifications

Specifications

Series
Q08M
Interface
PNP Normally open (NO)
Principle of optical operation
Retroreflective sensor
Light type
LED Red light
Range
0-1 m
Housing material
Zinc, Die casting
Operating voltage Ub
10-30 VDC
Dimension8 x 44 x 8 mm
Principle of operationPhotoelectric sensor
Beam characteristicDivergent
Light spot sizeØ 3.0 mm Light exit
ConnectionCable, 2.00 m, PUR
Material sensing surfacePMMA
Approval/ConformitycULus, CE, EAC, WEEE
