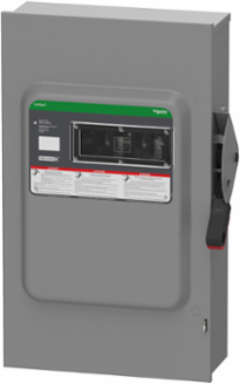

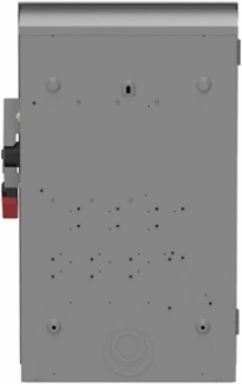

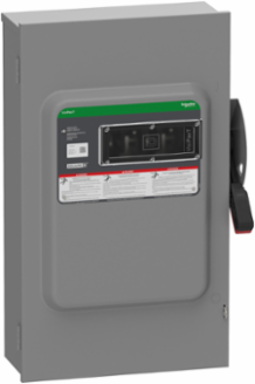

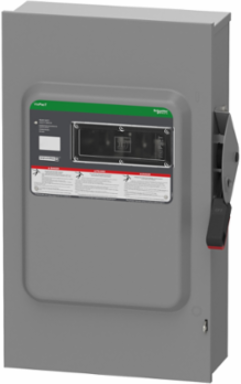

Square D VH364R Heavy Duty Safety Switch 600V 200A 3-Pole NEMA 3R
- MPN: VH364R
- PPN: SCH-VH364R
CAD
$1620.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust electrical control and safety in demanding environments, this heavy-duty safety switch from Schneider Electric is designed to handle up to 600 volts and 200 amps, ensuring reliable performance for various industrial applications. With its three-pole configuration, it provides efficient disconnection for three-phase systems, while the NEMA 3R rating indicates suitability for outdoor use, protecting against rain and moisture. This switch not only enhances safety but also promotes operational efficiency in your electrical setup, making it a vital component for industrial facilities seeking dependable electrical management solutions.
Features
- Housed in a rugged NEMA 3R-rated galvanized steel enclosure, the VH364R is specifically engineered to provide superior protection against rain, sleet, and external ice formation. This makes it the ideal choice for outdoor HVAC units, pumping stations, and industrial processing areas where weather resistance and physical durability are non-negotiable for operational uptime.
- Rated for up to 200A and 600V, this 3-pole fusible safety switch provides a robust disconnect solution for heavy machinery and large-scale electrical loads. Its high voltage ceiling allows it to be used in diverse applications, from standard 480V industrial motors to specialized DC solar arrays, offering a versatile "single-source" solution for complex facility layouts.
- Unlike a standard molded-case circuit breaker, this fusible disconnect utilizes physical fuses to provide high-level short-circuit protection and a visible break in the circuit. This ensures that downstream equipment is shielded from catastrophic surges while providing a clear, physical indication of "open" or "closed" status for maintenance personnel, significantly increasing workplace safety.
- Designed with an oversized gutter and generous wire-bending space, this Schneider Electric safety switch accommodates the large-diameter conductors required for 200A service. This thoughtful engineering reduces installation time for commercial electricians, minimizes mechanical stress on lugs, and prevents overheating caused by cramped or pinched wiring.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 200 A
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J

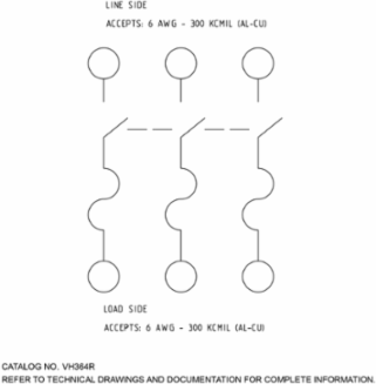

- Number of Poles
- 3
- Net Weight
- 25.17 kg (55.49 lb)
- Wire Size
- AWG 6...250 kcmil copper or aluminum
- Wiring Configuration
- 3-wire
- Duty Rating
- Heavy duty
- Certifications
- UL Listed file E2875
- Device Application
- Heavy application
Voltage Rating600 V AC/DC
Disconnector Device TypeFusible disconnect

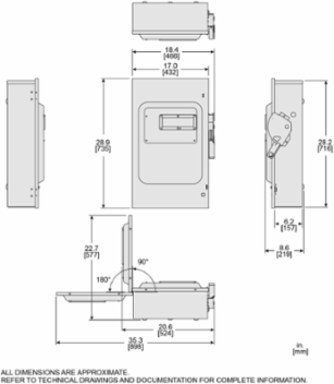

Dimensions8.506 in x 17.016 in x 28.94 in
Mounting TypeSurface
Electrical ConnectionLugs
Fuse TypeH or K, R or J
Enclosure RatingNEMA 3R galvannealed steel
Series NameHeavy duty
Country of OriginUS
