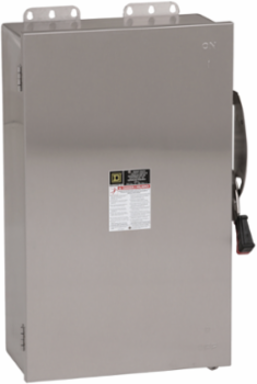

Square D HU664DS Heavy Duty Safety Switch 600V 200A 6-Pole NEMA 4/4X/5, 32.55 kg
Square D HU664DS Heavy Duty Safety Switch 600V 200A 6-Pole NEMA 4/4X/5, 32.55 kg
- MPN: HU664DS
- UPC: 785901078081
- PPN: SCH-HU664DS
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Designed for demanding applications, the Heavy Duty Safety Switch from Schneider Electric is engineered to provide reliable disconnection in a robust package. With a rated operational voltage of 600V AC and a current capacity of 200A, this switch is built to handle heavy-duty requirements, featuring a 6-pole configuration and a durable NEMA 4/4X/5 stainless steel enclosure that ensures protection against harsh environmental conditions. Its surface mounting design and electrical connection via lugs make installation straightforward, while its compliance with various safety and environmental standards, including UL listing and RoHS regulations, underscores its commitment to quality and sustainability. Weighing in at 32.55 kg, this switch is not only functional but also designed with a focus on safety and efficiency, making it an ideal choice for industrial settings.
Specifications
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305005EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Complementary
- Height
- 29 in
- Tightening Torque
- 275-275 lbf.in 13.3-127 mm² AWG 6...250 kcmil)
- Awg Gauge
- AWG 6...250 kcmil copper or aluminum
- Width
- 25.25 in
- Net Weight
- 32.55 kg
Device Mountingsurface
Electrical Connectionlugs
Wiring Configuration6-wire
Depth8.88 in
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4/4X/5 stainless steel 304
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 6
Disconnector Device Typenon-fusible disconnect
[In] Rated Current200 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC
